Repair Procedures: Disassembly

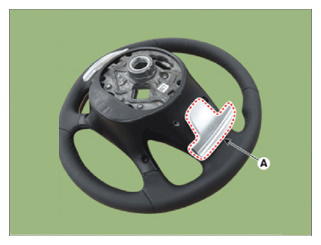

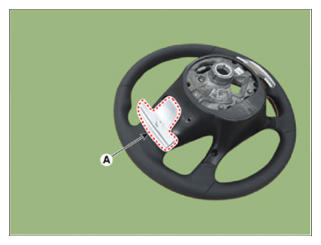

Loosen the screw and then remove the paddle shift switch (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

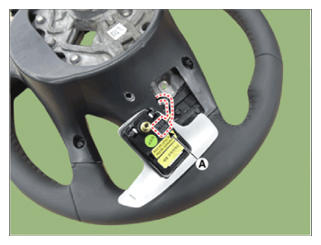

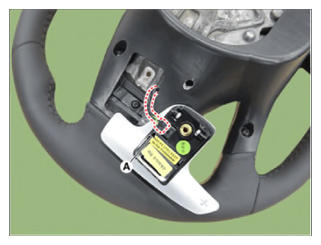

Disconnect the paddle shift switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

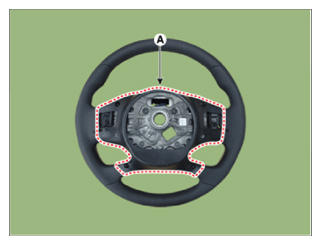

Loosen the screw and then remove the lower cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

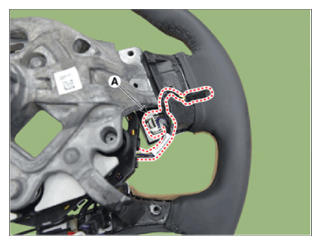

Disconnect the remote control switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

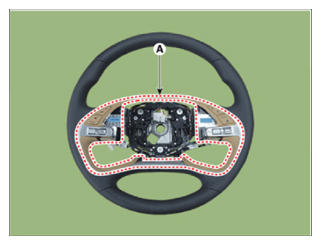

Loosen the screw and then remove the switch bezel (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the screw and then remove the remote control switch (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the ground connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

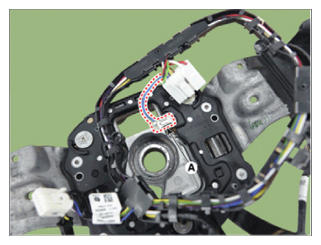

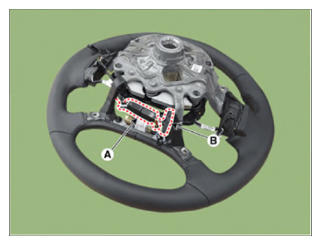

Disconnect the heated steering wheel connector (A) and haptic motor connector (B) and then remove the wiring.

Courtesy of HYUNDAI MOTOR AMERICA

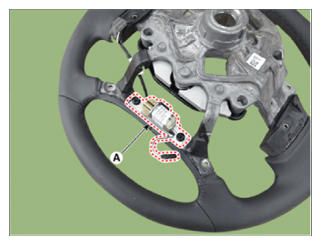

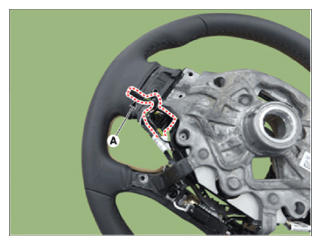

Loosen the screw and then remove the haptic motor (A).

Courtesy of HYUNDAI MOTOR AMERICA

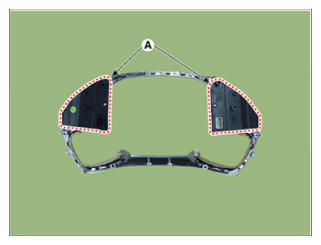

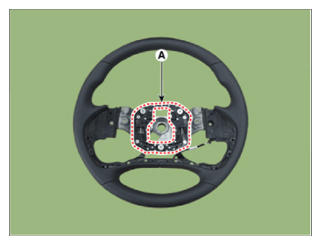

Loosen the mounting bolts and then remove the horn plate (A).

Courtesy of HYUNDAI MOTOR AMERICA
Reassembly in the reverse order of disassembly.
