A/C Module

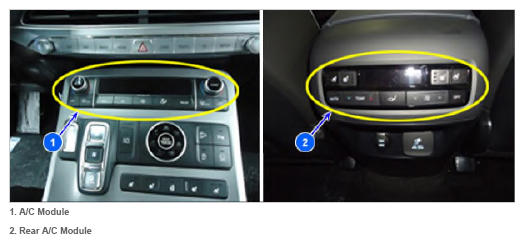

G15559449Courtesy of HYUNDAI MOTOR AMERICA

The front control panel and the rear control panel communicate with K-Line to enable temperature and wind control for both the driver and rear seats.
