LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Genesis
>>
2021
>>
G80 2.5T Advanced, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
4WD Control System Diagnosis
>>
DTC P3101-00: Control Module - Motor Overcurrent
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

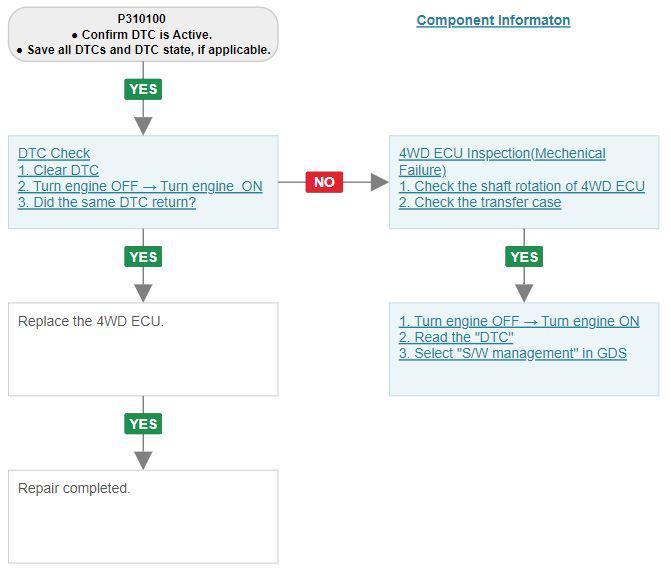

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
