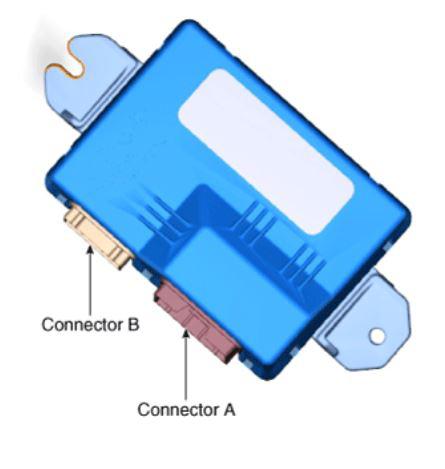

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

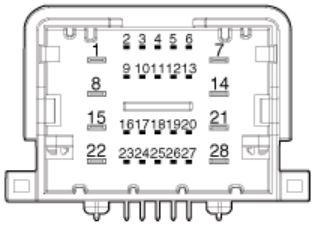

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Cinching motor (+)
	2	Trunk lid switch ILL
	3	-
	4	Buzzer
	5	B-GAN Low
	6	B-CAN High
	7	-
	8	Cinching motor (-)
	9	-
	10	-
	11	Trunk lid lock switch
	12	-
	13	-
	14	-
	15	Motor power
	16	PAWL switch
	17	Catch switch
	18	Cancel lever switch
	19	-
	20	Latch switch ground
	21	System ground
	22	System power
	23	Trunk open/dose switch
	24	Trunk inner switch
	25	Home position sensor
	26	-
	27	-
	28	Motor power ground

Connector B	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-
	2	-
	3	Drive unit LH shield ground
	4	-
	5	-
	6	Hall sensor LH power
	7	Drive unit motor LH close (+)
	8	-
	9	-
	10	-
	11	Hall sensor LH ground
	12	Mall sensor 1 LH
	13	Hall sensor 2 LH
	14	Drive unit motor LH close (+)
