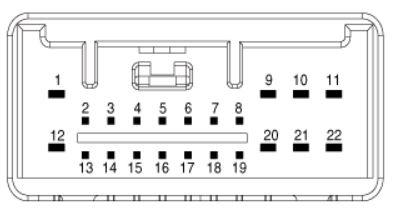

Terminal Function

Courtesy of HYUNDAI MOTOR AMERICA

Pin No	Description
1	B +
2	Tilt sensor input
3	Tele sensor input
4	-
5	-
6	B_CAN High
7	B_CAN Low
8	haptic motor down output
9	haptic motor up output
10	Battery +
11	Tilt motor down output
12	Ignition 1
13	Position sensor power output
14	-
15	Tilt down switch input
16	-
17	-
18	Sensor ground
19	Ground
20	Ground power
21	Tele motor forward direction output
22	Tele motor backward direction output
