Components And Components Location: Component

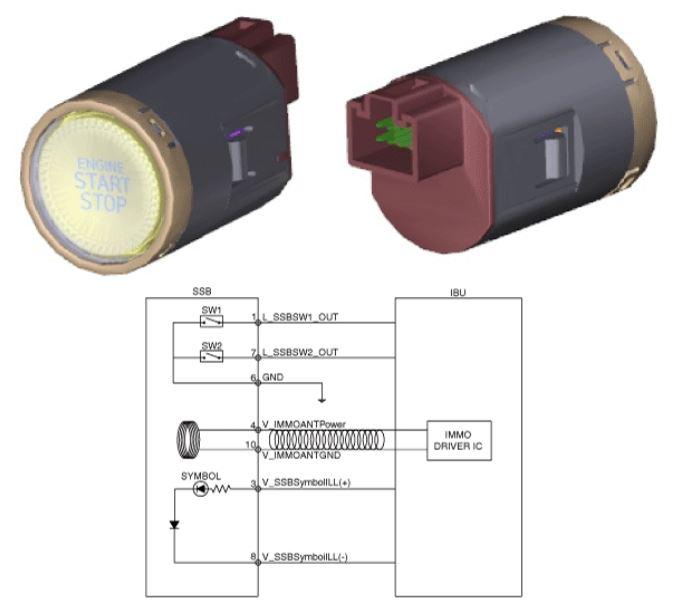

G15550078Courtesy of HYUNDAI MOTOR AMERICA
Connector NO Description
G13957207Courtesy of HYUNDAI MOTOR AMERICA
 1 SSB Switch 1 (OUT)
2 -
3 SSB illumination (+)
4 Immobilizer Power
5 -
6 Ground
7 SSB Switch 2
8 SSB illumination (-)
9 -
10 Immobilizer Ground
