Steering Column Module (SCM) switch

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Disconnect the steering column module connector.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

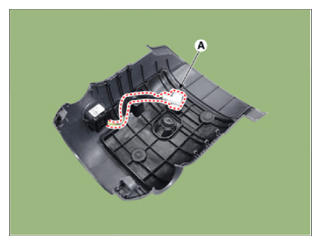

  4. Disconnect the steering module switch connector and clip (A).
    G15548857Courtesy of HYUNDAI MOTOR AMERICA

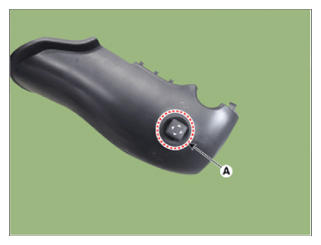

  5. Using the driver, remove the steering column module switch (A).
    G15548858Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
