Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

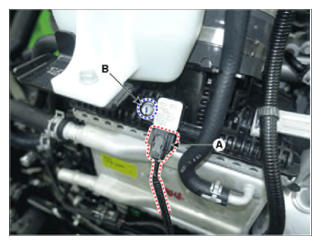

- Disconnect the boost pressure sensor & boost temperature sensor connector (A).
- Remove the boost pressure sensor & boost temperature sensor after removing the mounting bolts (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
