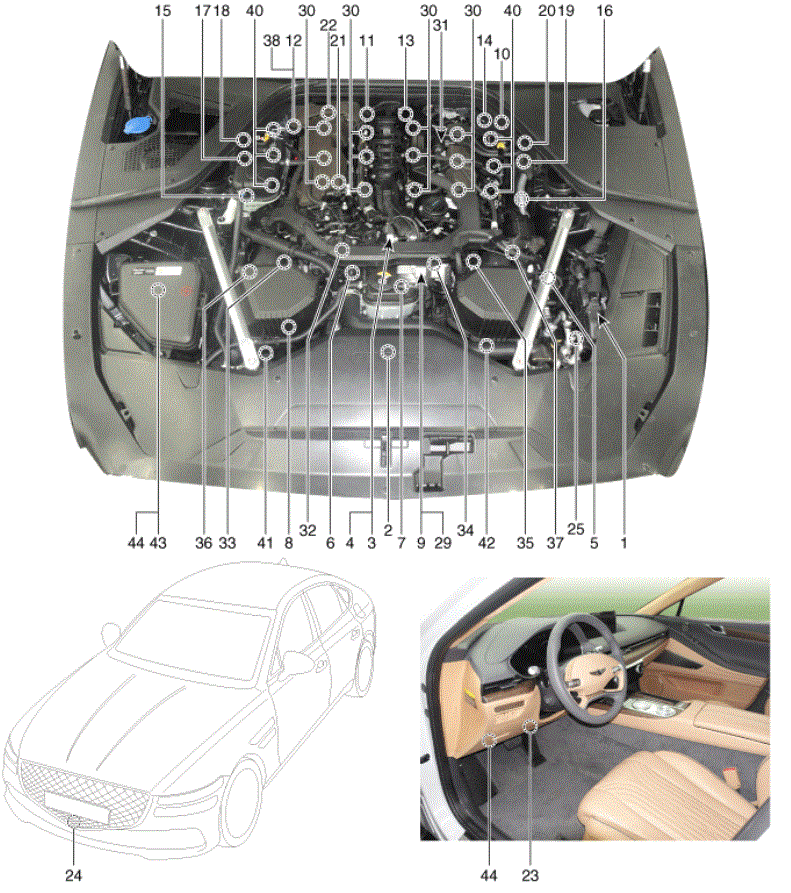

Components Location

G15556941Courtesy of HYUNDAI MOTOR AMERICA
G00637492

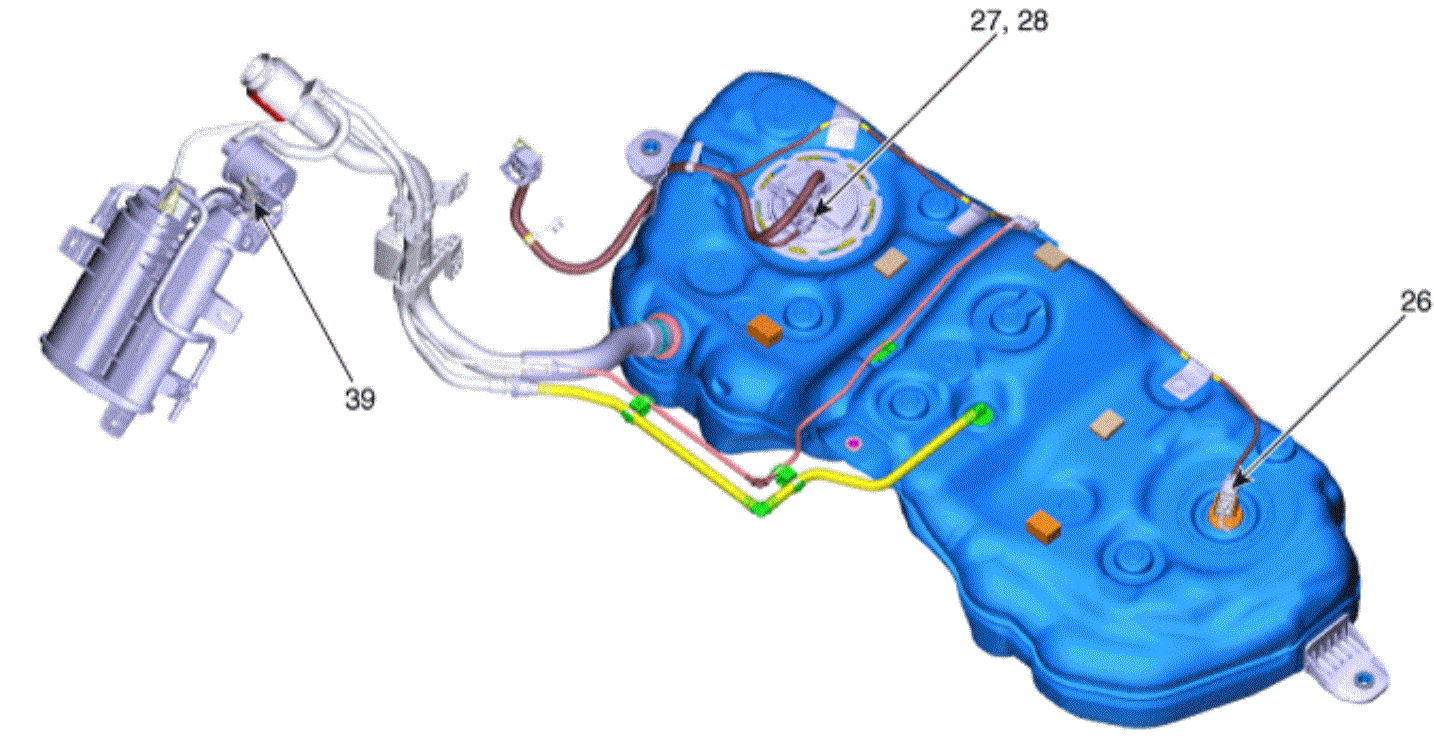

  1. ECM (Engine Control Module)
  2. Boost Pressure Sensor (BPS) & Boost Temperature Sensor (BTS)
  3. Manifold Absolute Pressure Sensor (MAPS)
  4. Intake Air Temperature Sensor (IATS)
  5. Ejector Pressure Sensor (EPS) / Engine Coolant Temperature Sensor (ECTS) - Water Temperature Control Assembly Side
  6. Engine Coolant Temperature Sensor (ECTS) - Water Pump Housing Side
  7. Engine Coolant Temperature Sensor (ECTS) - Electronic Water Pump (EWP) Side
  8. Throttle Position Sensor (TPS) [integrated into ETC Module]
  9. Crankshaft Position Sensor (CKPS)
  10. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
  11. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
  12. Camshaft Position Sensor (CMPS) [Bank 2 / Intake]
  13. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust]
  14. Knock Sensor (KS) [Bank 1]
  15. Knock Sensor (KS) [Bank 2]
  16. Heated Oxygen Sensor (WR-HO2S) [Bank 1 / Sensor 1]
  17. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
  18. Heated Oxygen Sensor (WR-HO2S) [Bank 2 / Sensor 1]
  19. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2]
  20. Rail Pressure Sensor (RPS)
  21. Oil Pressure & Temperature Sensors (OPTS)
  22. Accelerator Position Sensor (APS)
  23. Ambient temperature sensor (ATS)
  24. Air Conditioning Pressure Transducer (APT)
  25. Fuel Tank Pressure Sensor (FTPS)
  26. Fuel Level Sensor (FLS)
  27. Fuel Pressure Sensor (FPS)
  28. ETC motor [integrated into ETC Module]
  29. Injector
  30. Purge Control Solenoid Valve (PCSV)
  31. Variable Force Solenoid (VFS) [Bank 1 / Intake]
  32. Variable Force Solenoid (VFS) [Bank 1 / Exhaust]
  33. Variable Force Solenoid (VFS) [Bank 2 / Intake]
  34. Variable Force Solenoid (VFS) [Bank 2 / Exhaust]
  35. Electronic WGT Control Actuator (EWGA) [Bank 1]
  36. Electronic WGT Control Actuator (EWGA) [Bank 2]
  37. Fuel Pressure Control Valve (FPCV)
  38. Canister Close Valve (CCV)
  39. Ignition Coil
  40. Electronic RCV Control Valve [Bank 1]
  41. Electronic RCV Control Valve [Bank 2]
  42. Main Relay
  43. Fuel Pump Relay
  44. Magnetic Diagnostic Connector (DLC) [16-pin]

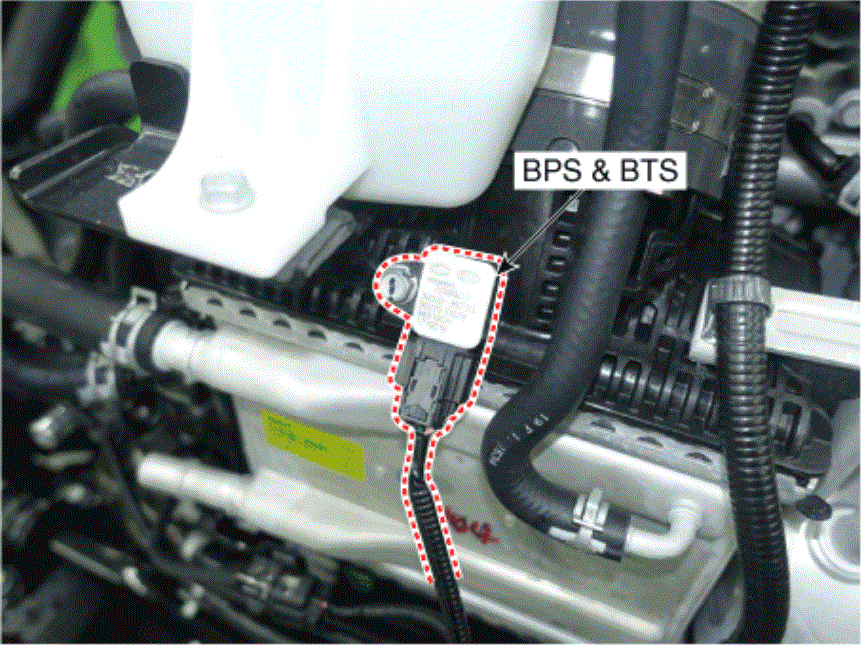

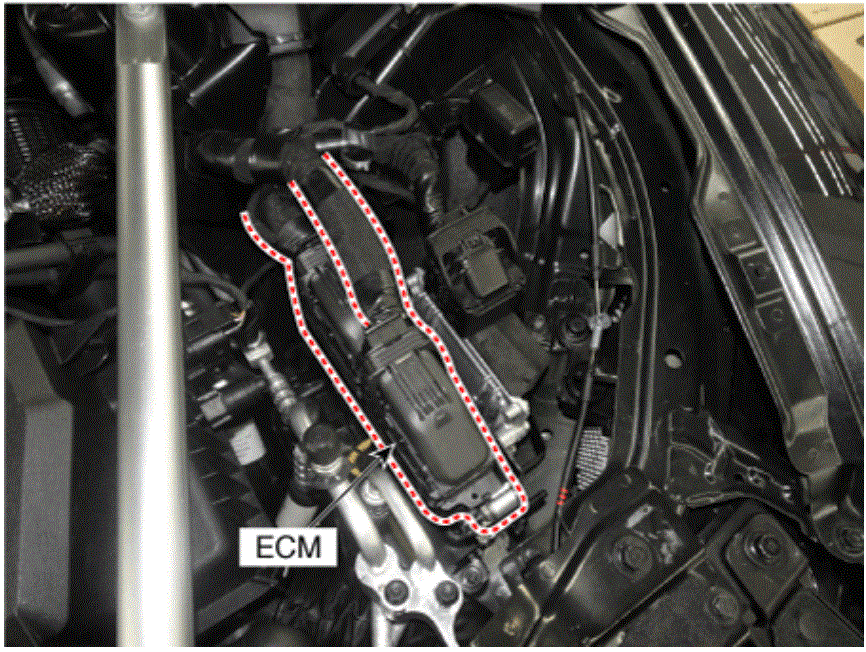

1. ECM (Engine Control Module) 2. Boost Pressure Sensor (BPS) & Boost Temperature Sensor (BTS)
G00637493
G00637494

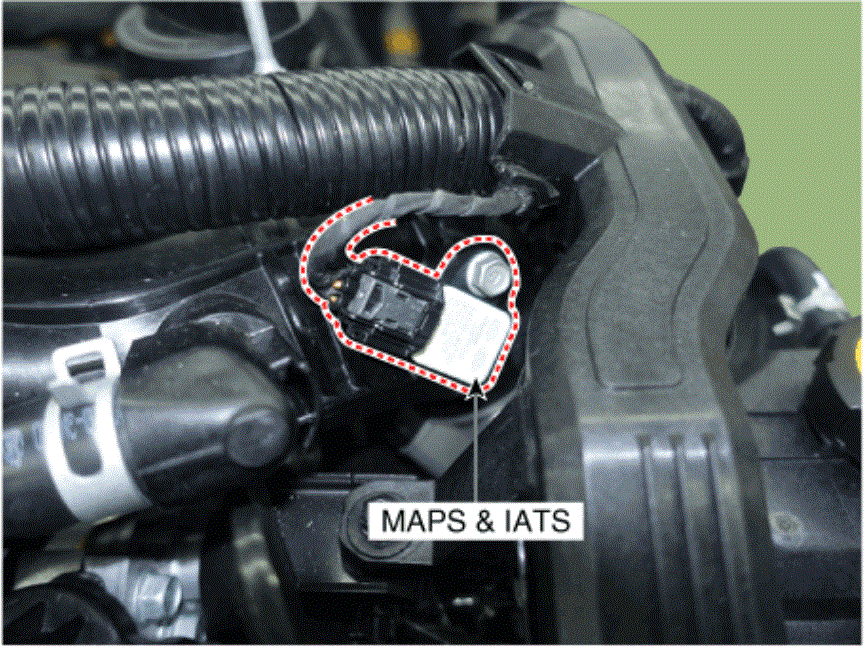

3. Manifold Absolute Pressure Sensor (MAPS)

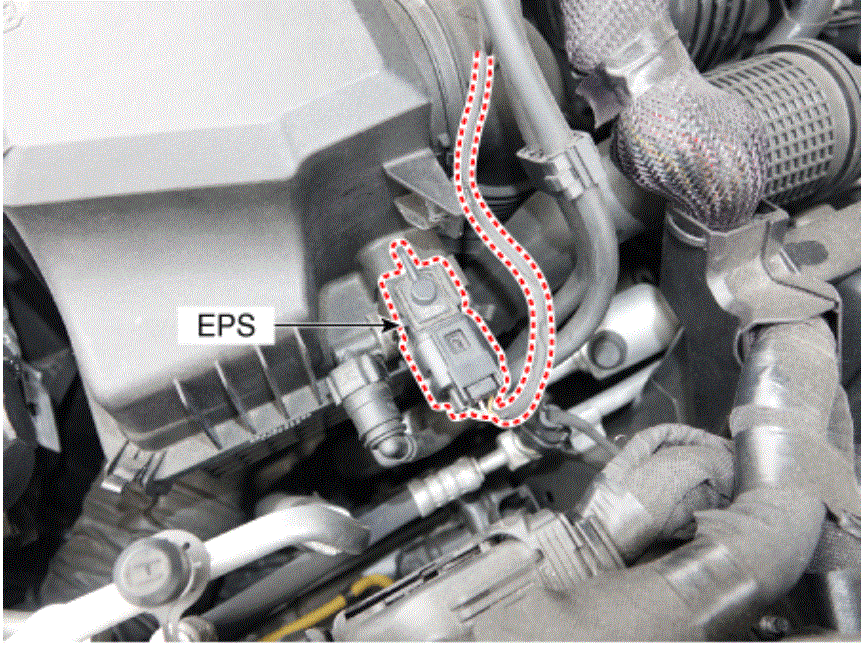

4. Intake Air Temperature Sensor (IATS)		 5. Ejector Pressure Sensor (EPS)
G00637495
G00637496

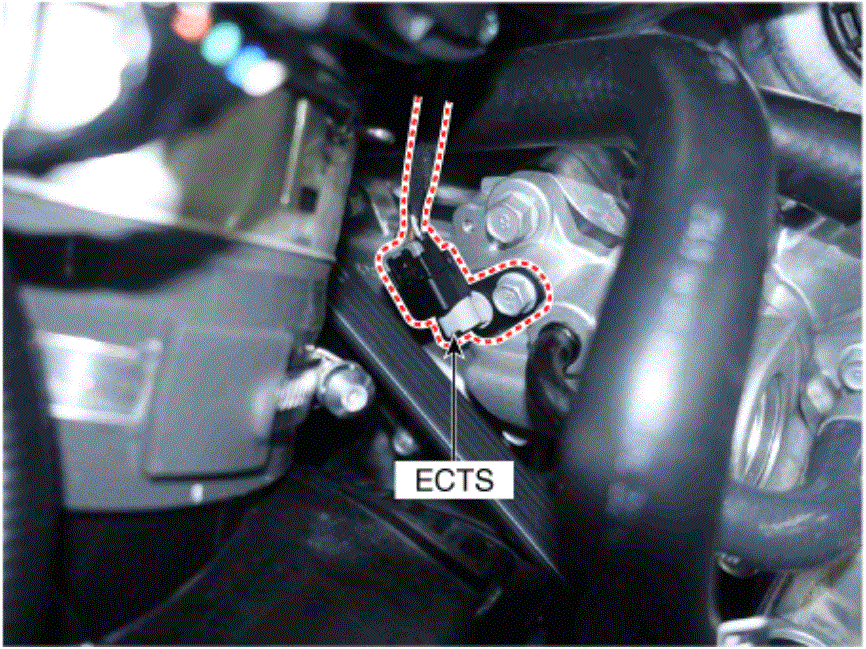

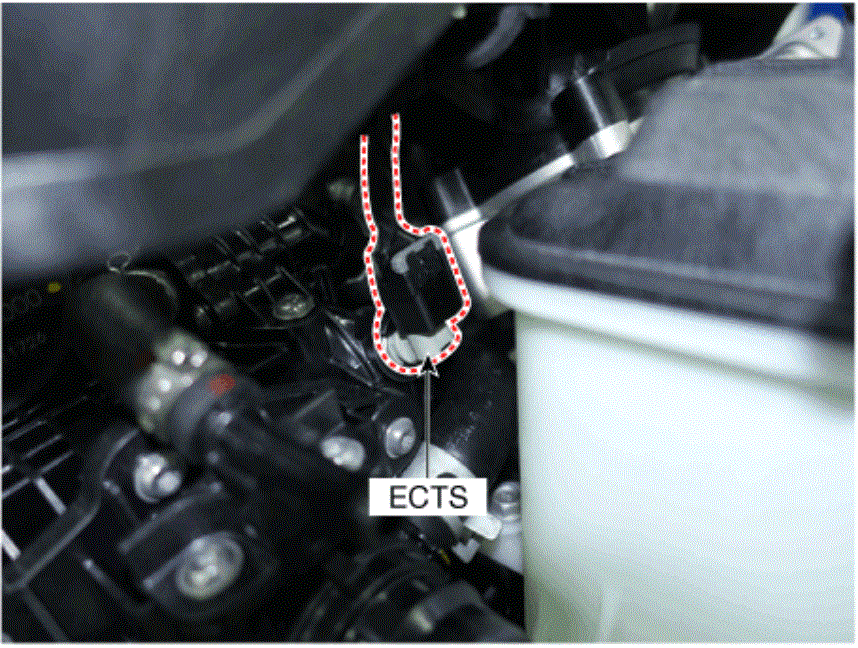

5. Engine Coolant Temperature Sensor (ECTS) - Water Temperature Control Assembly Side 6. Engine Coolant Temperature Sensor (ECTS) - Water Pump Housing Side
G00637497
G00637498

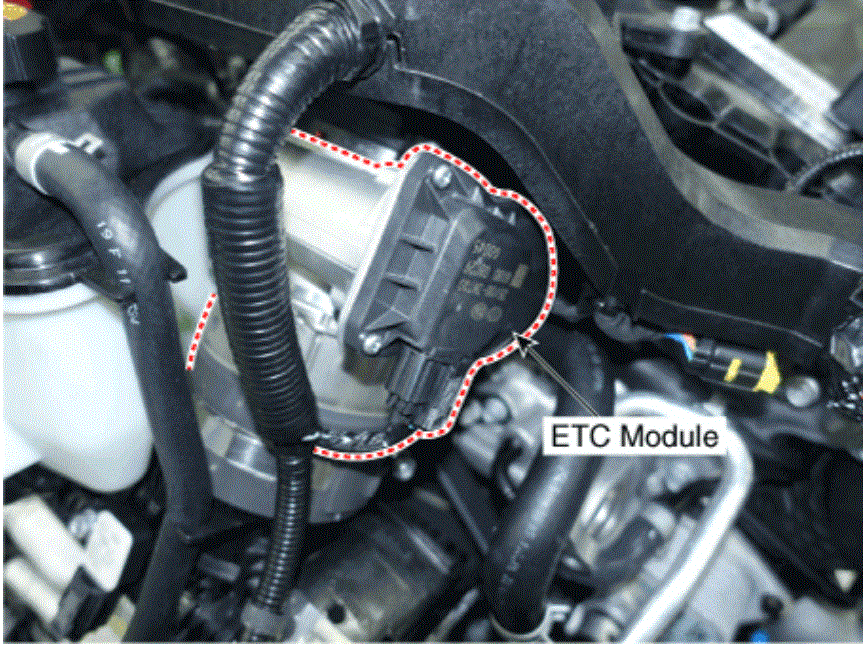

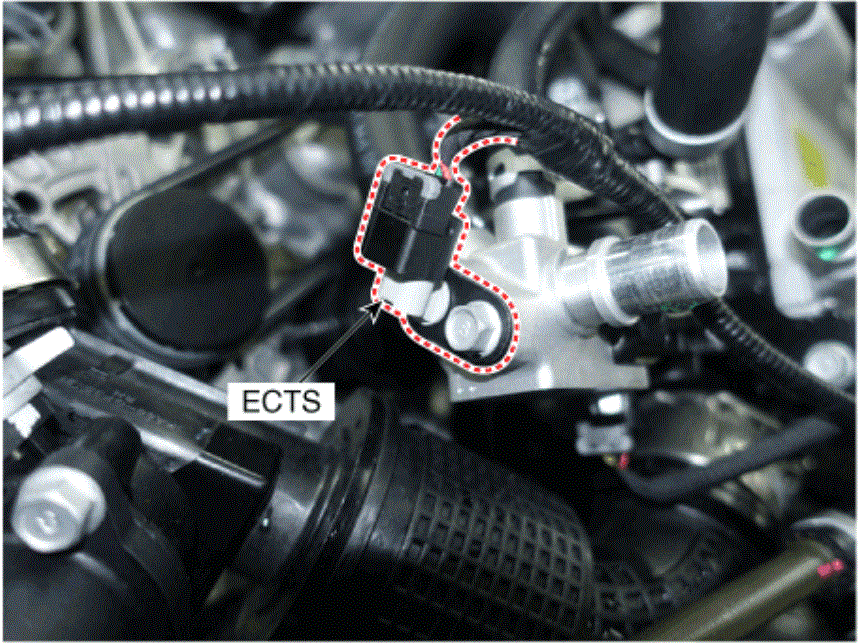

7. Engine Coolant Temperature Sensor (ECTS) - Electronic Water Pump (EWP) Side 8. Throttle Position Sensor (TPS) [integrated into ETC Module]
28. ETC motor [integrated into ETC Module]
G00637499
G00637500

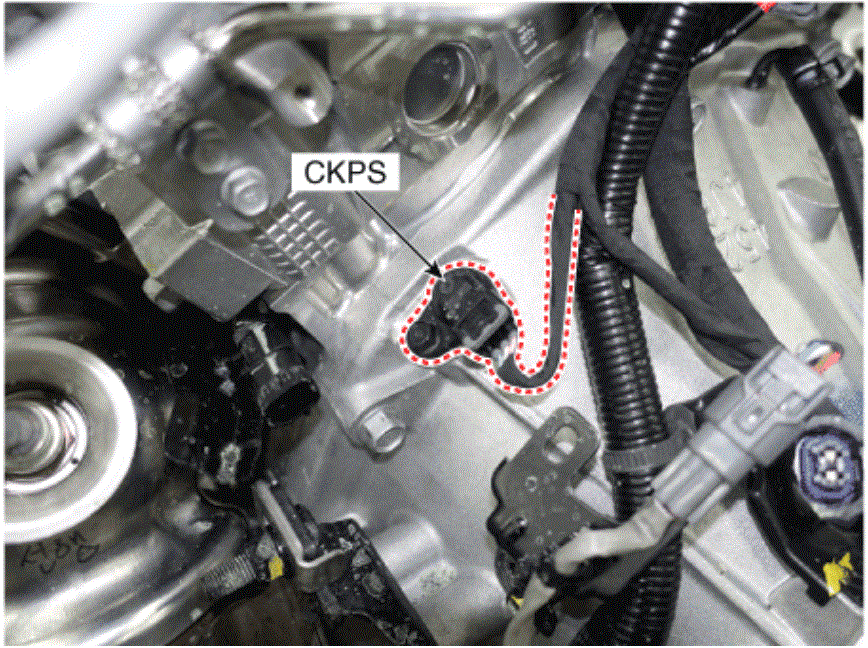

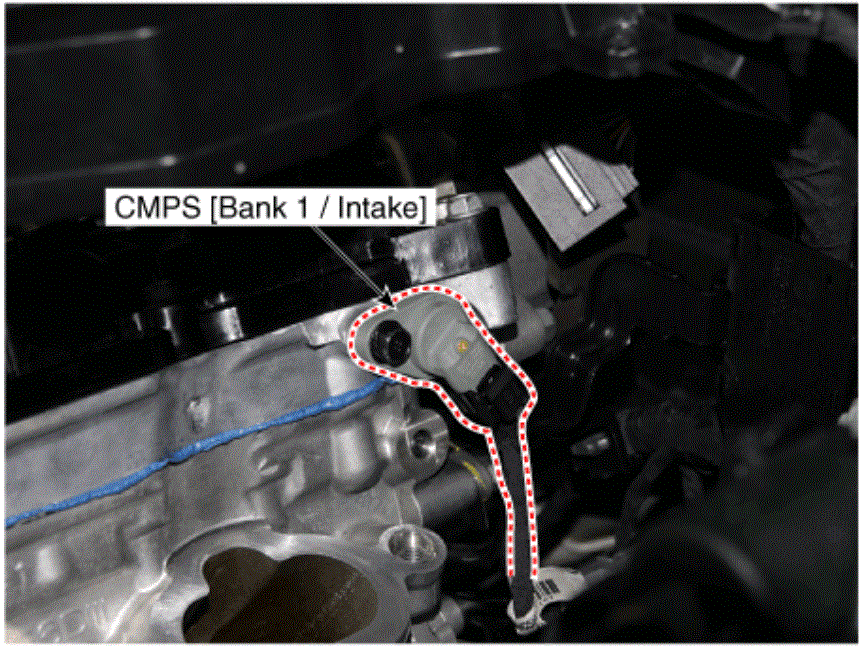

9. Crankshaft Position Sensor (CKPS) 10. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
G00637501
G00637502

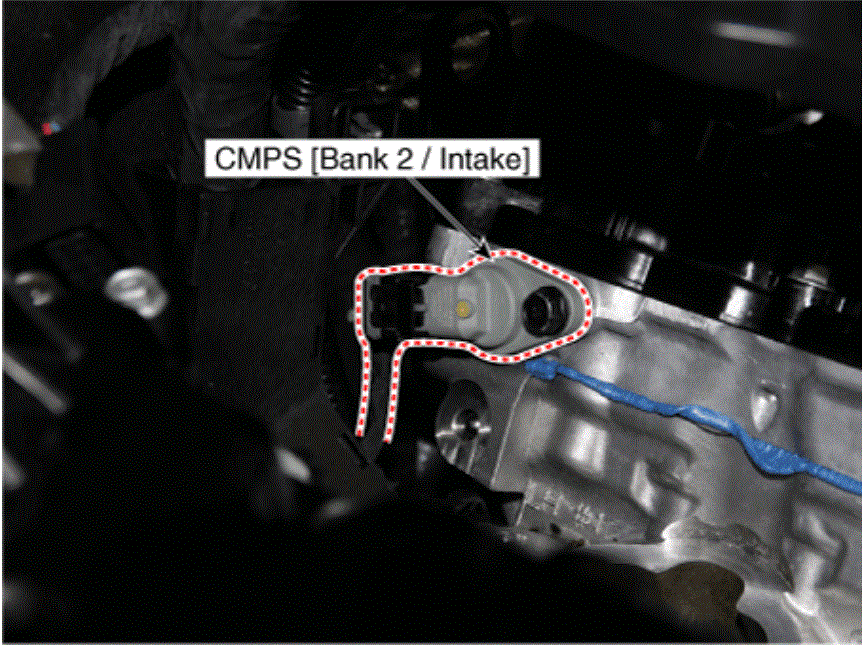

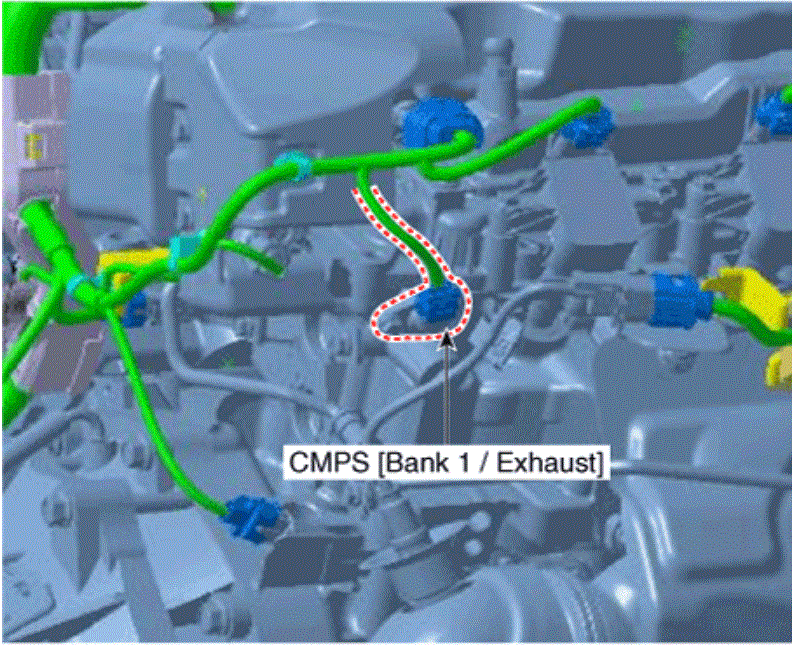

11. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] 12. Camshaft Position Sensor (CMPS) [Bank 2 / Intake]
G00637503
G00637504

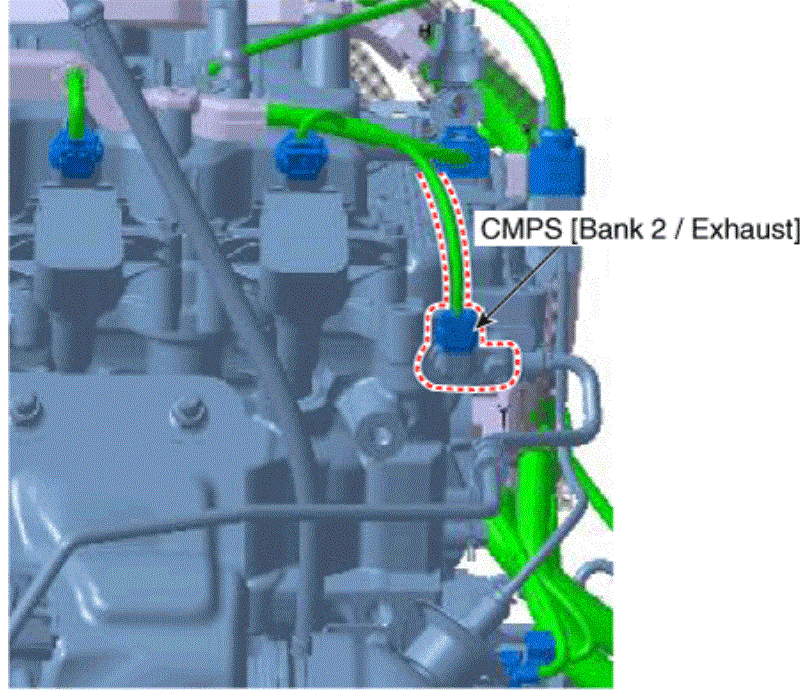

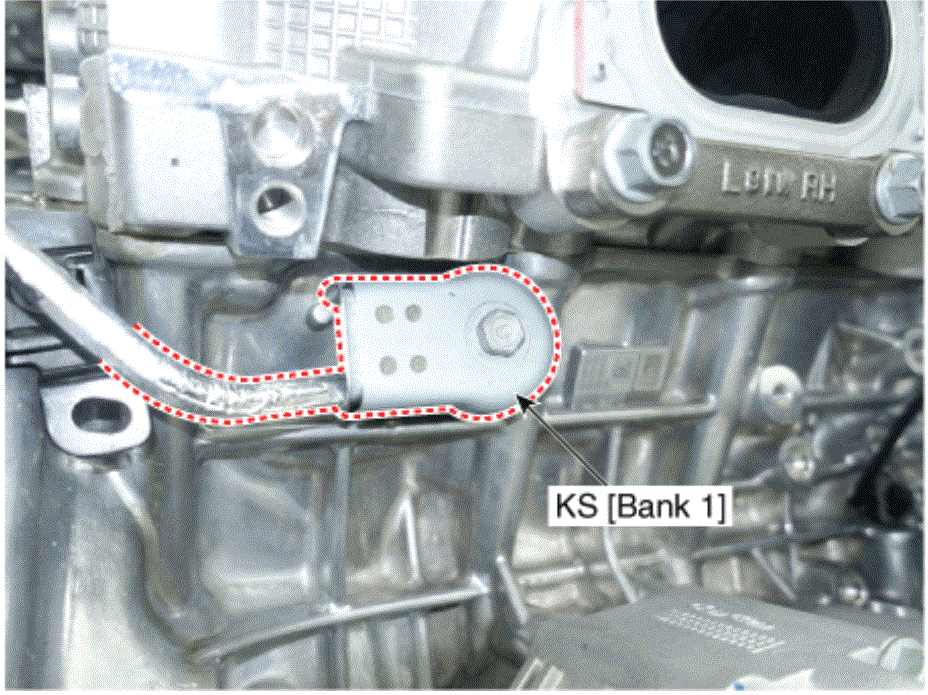

13. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust] 14. Knock Sensor (KS) [Bank 1]
G00637505
G00637506

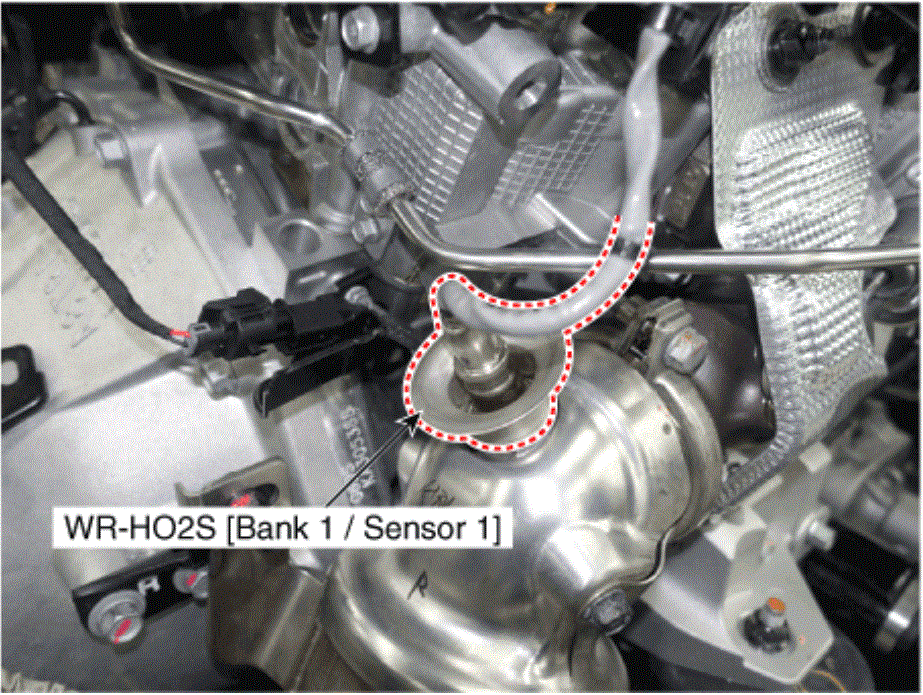

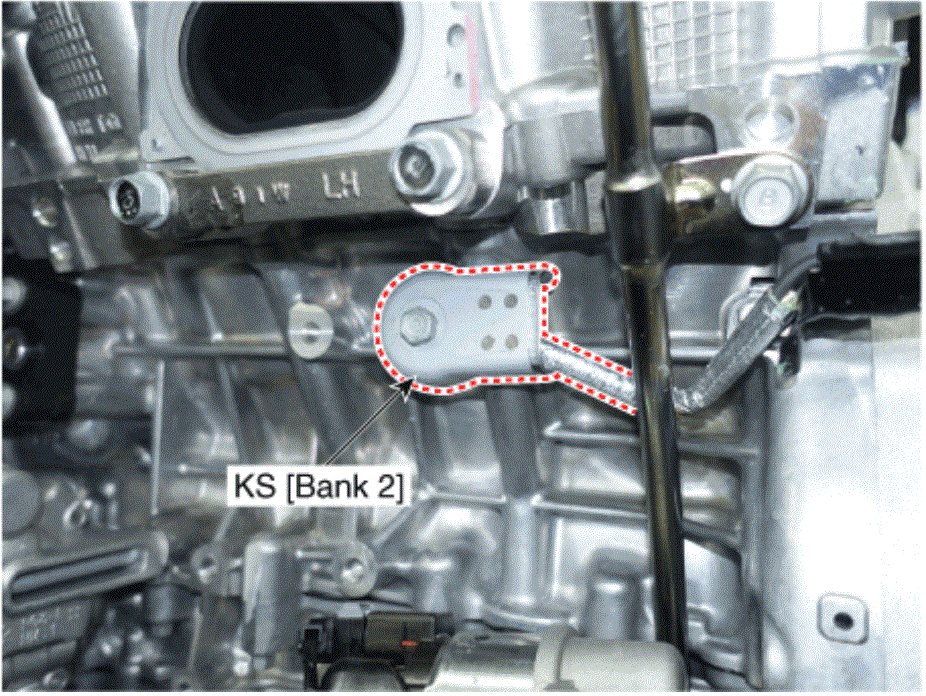

15. Knock Sensor (KS) [Bank 2] 16. Heated Oxygen Sensor (WR-HO2S) [Bank 1 / Sensor 1]
G00637507
G00637508

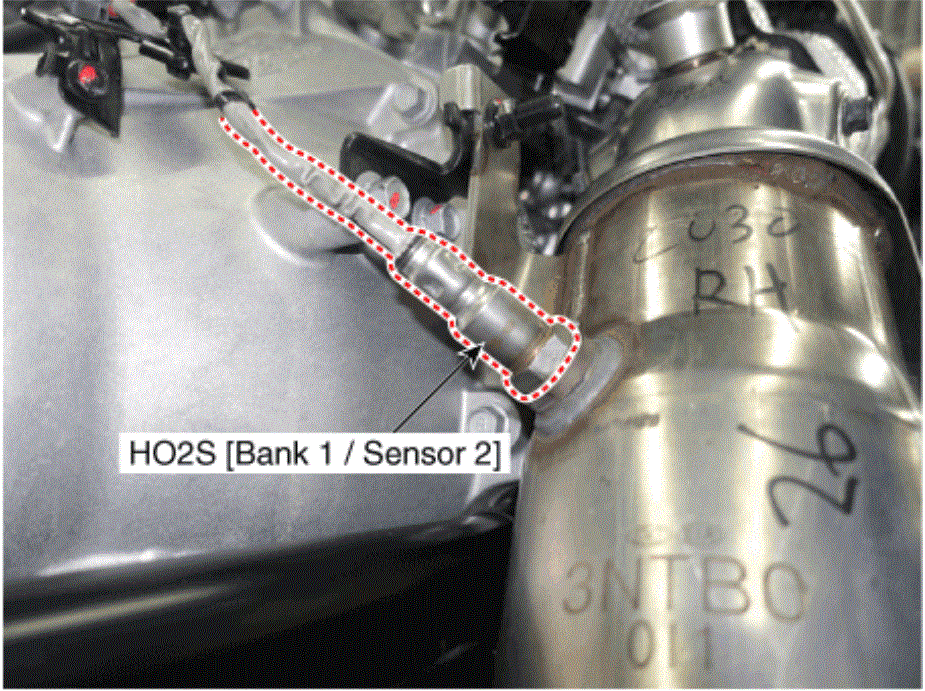

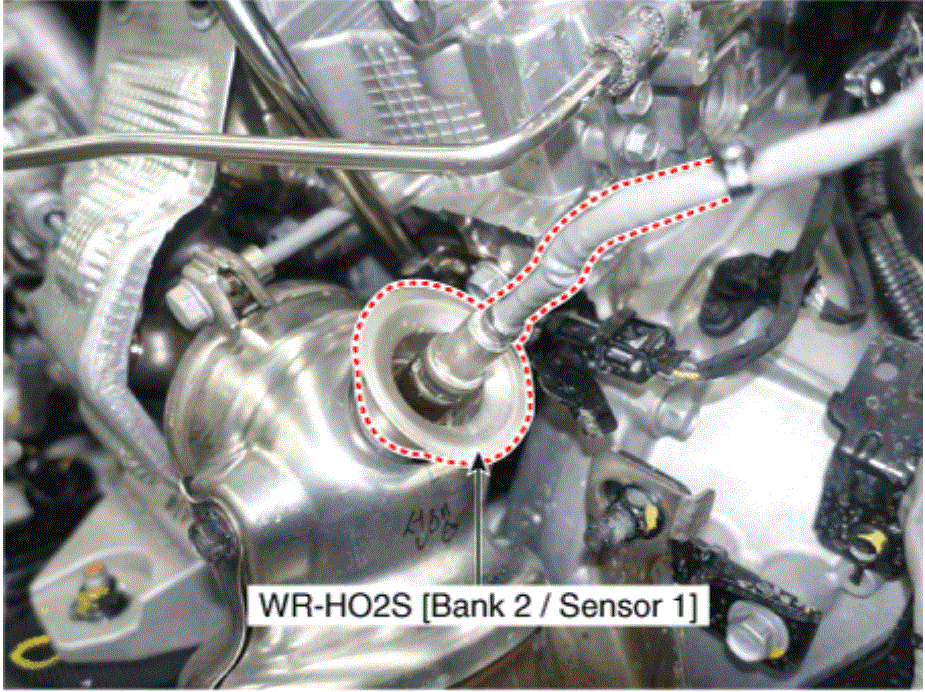

17. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] 18. Heated Oxygen Sensor (WR-HO2S) [Bank 2 / Sensor 1]
G00637509
G00637510

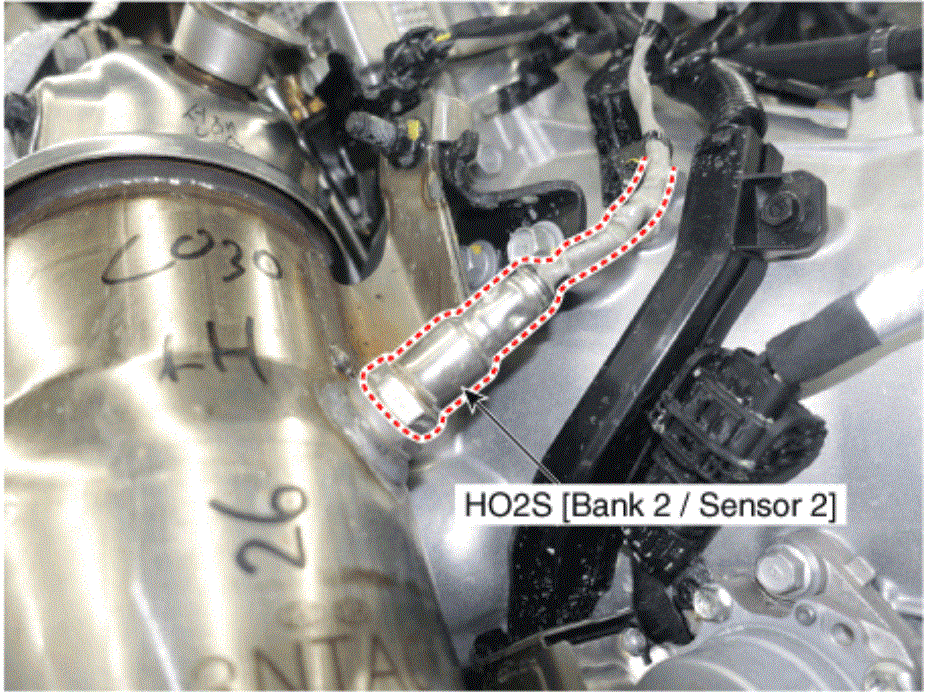

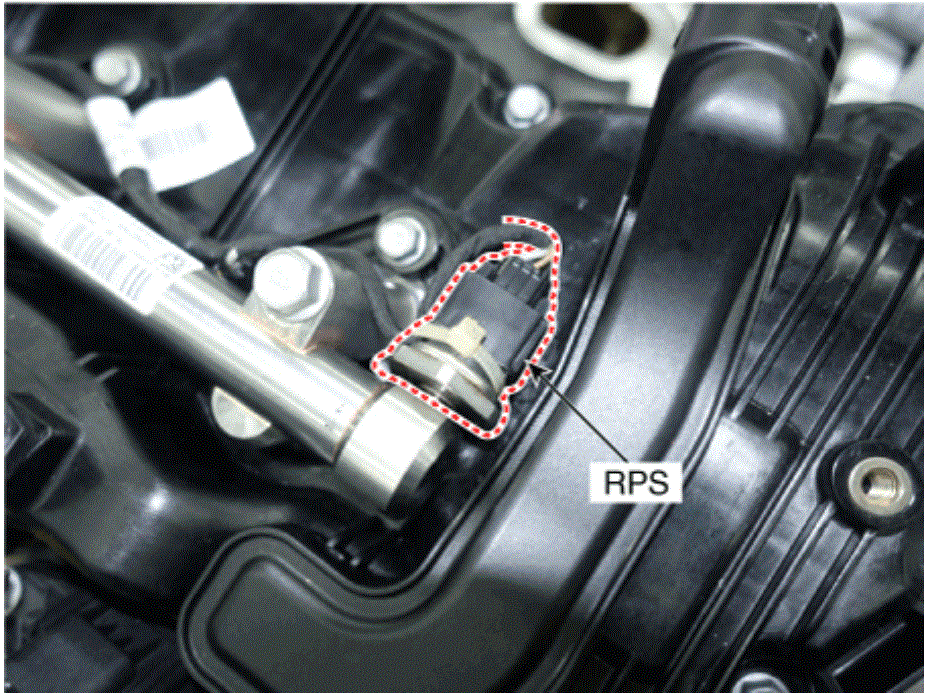

19. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2] 20. Rail Pressure Sensor (RPS)
G00637511
G00637512

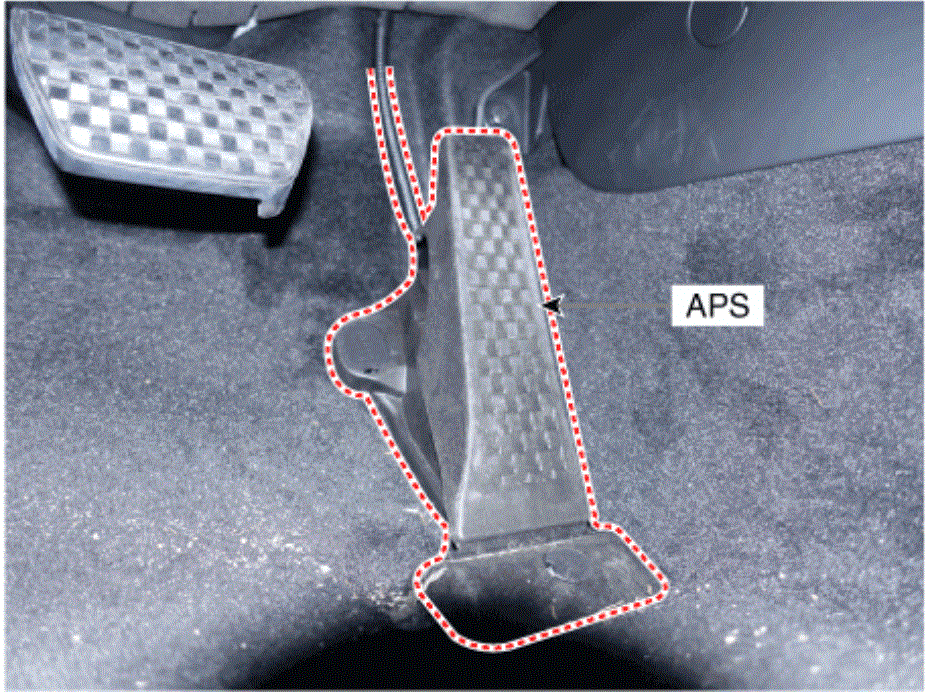

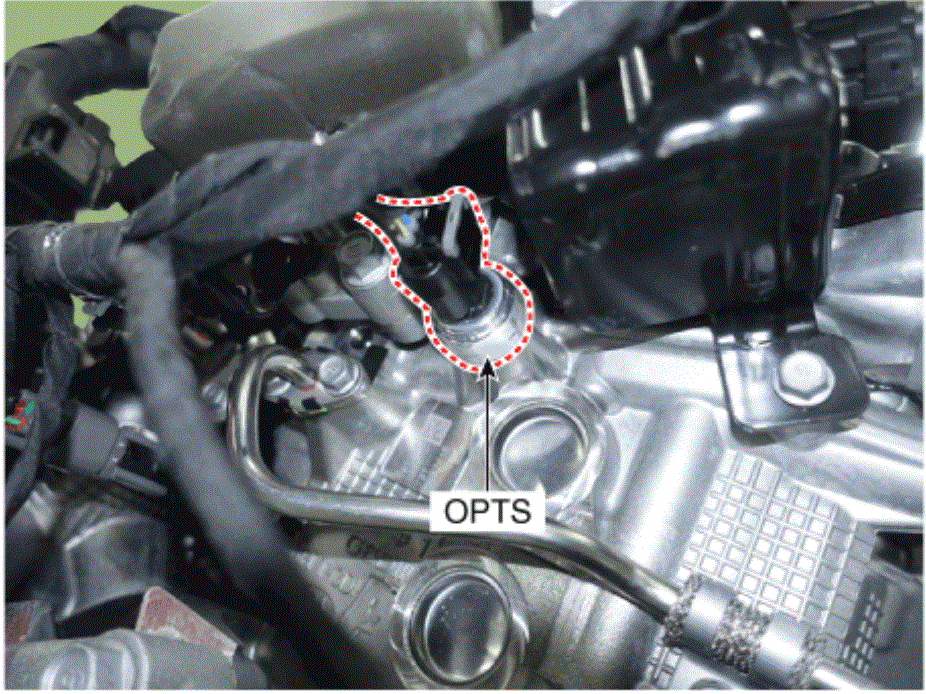

21. Oil Pressure & Temperature Sensors (OPTS) 22. Accelerator Position Sensor (APS)
G00637513
G00637514

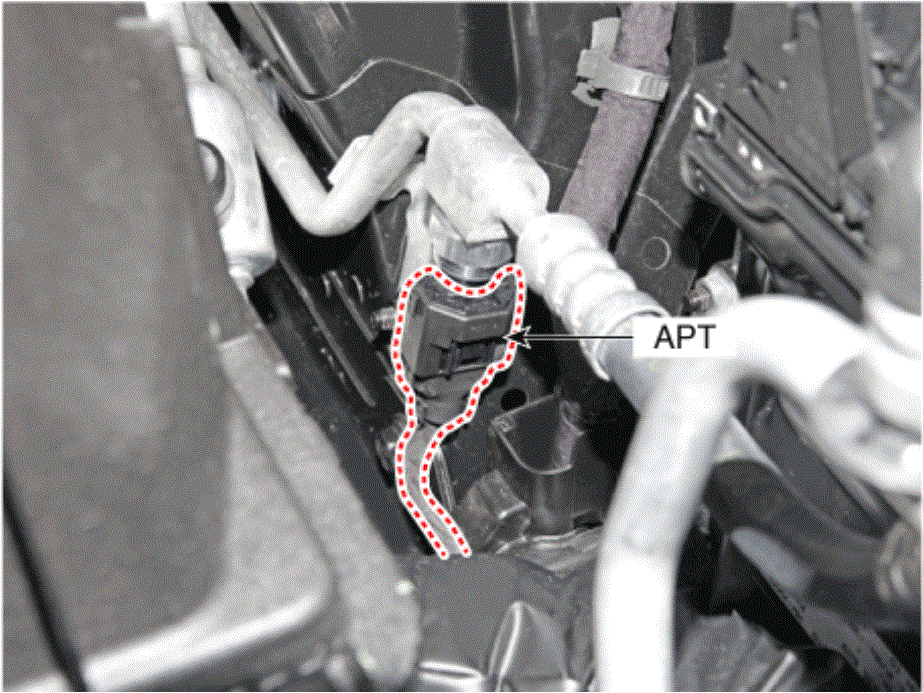

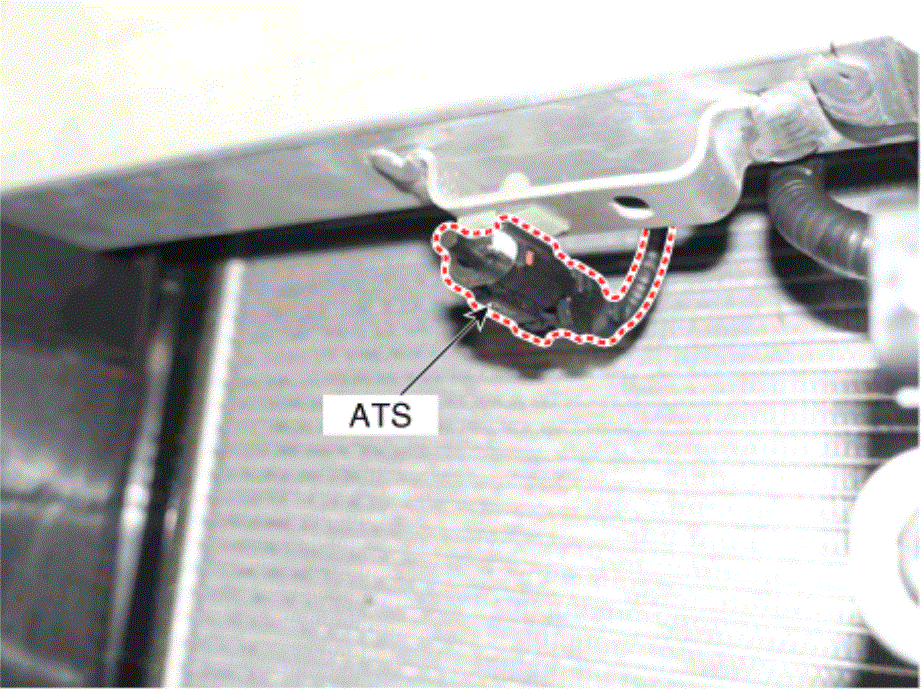

23. Ambient temperature sensor (ATS) 24. Air Conditioning Pressure Transducer (APT)
G00637515
G00637516

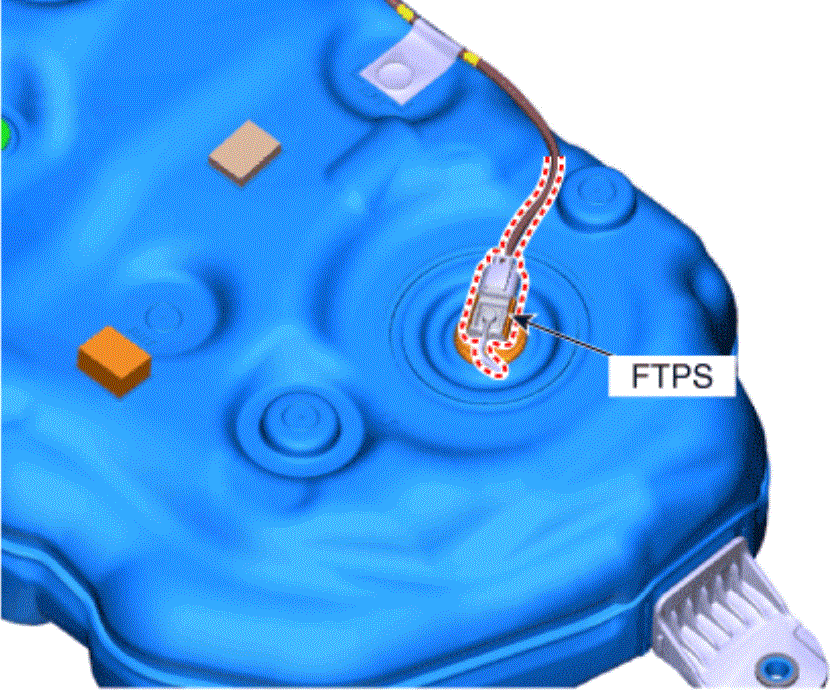

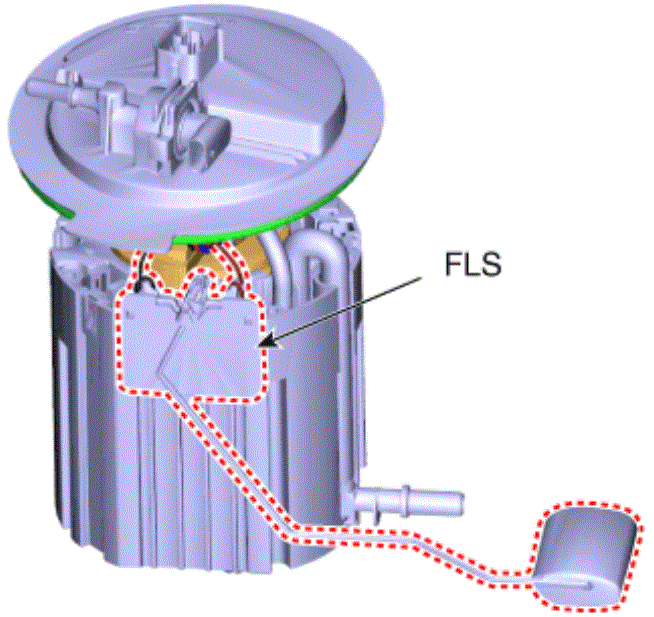

25. Fuel Tank Pressure Sensor (FTPS) 26. Fuel Level Sensor (FLS)
G00637517
G00637518

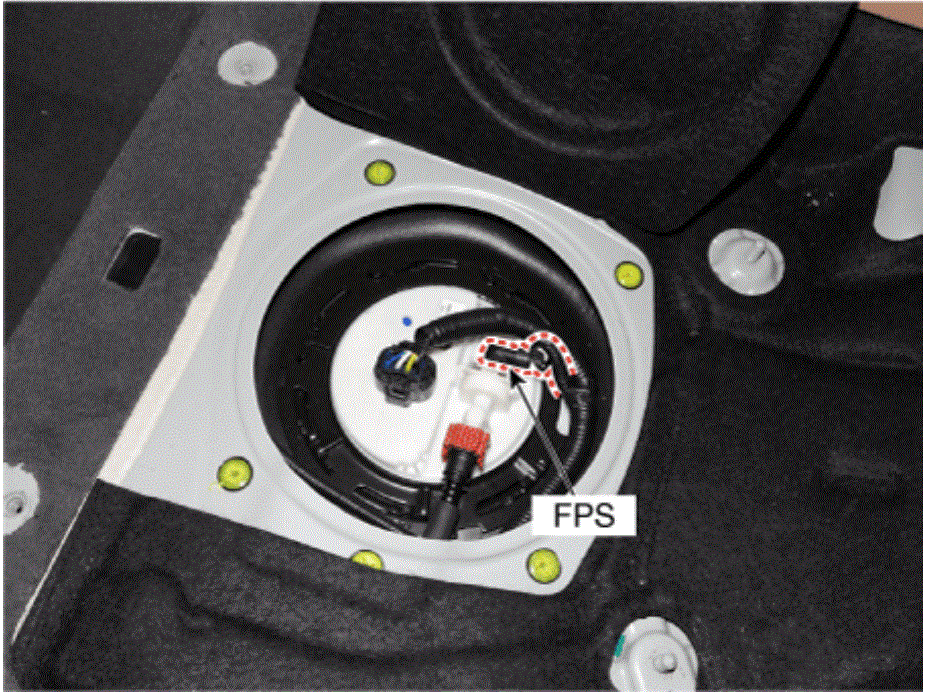

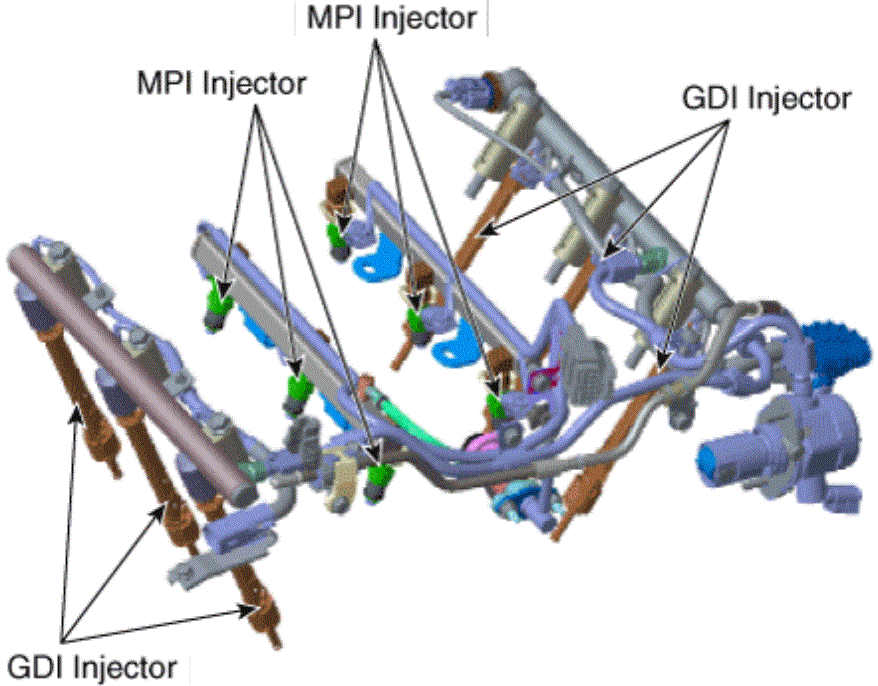

27. Fuel Pressure Sensor (FPS) 29. Injector
G00637519
G00637520

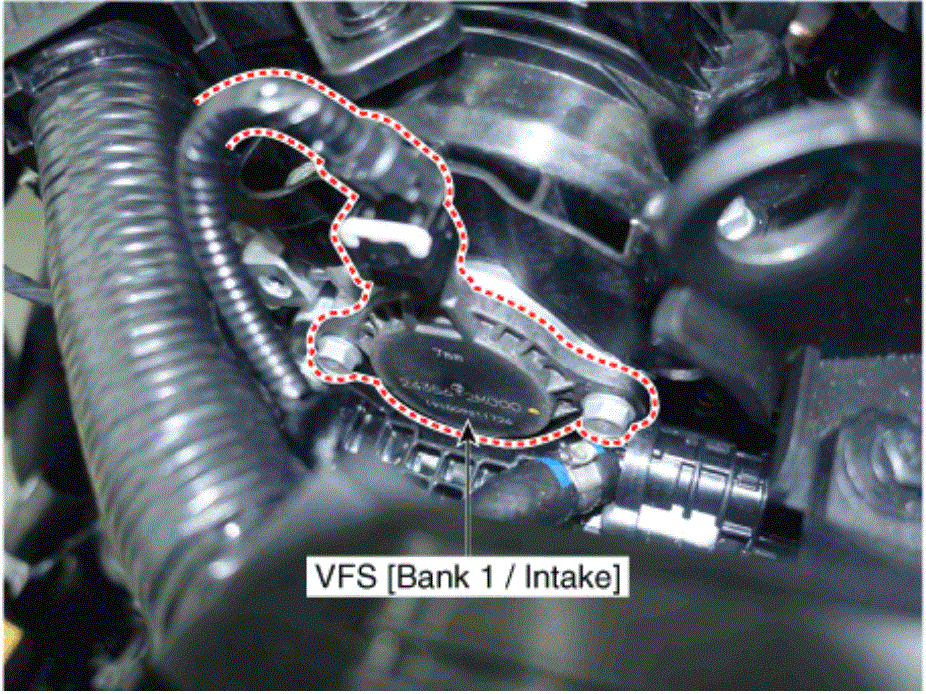

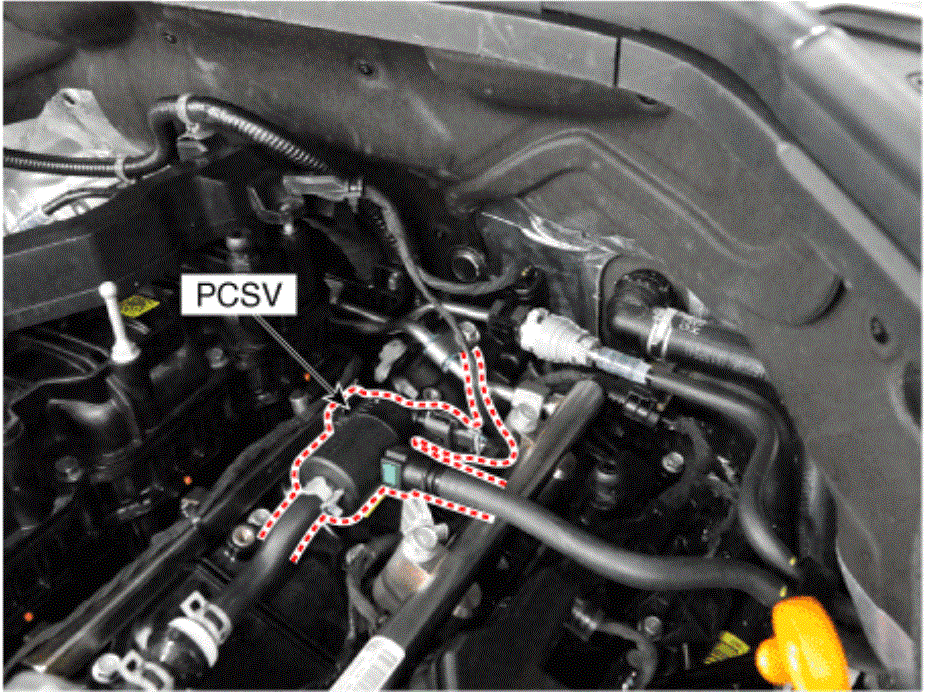

30. Purge Control Solenoid Valve (PCSV) 31. Variable Force Solenoid (VFS) [Bank 1 / Intake]
G00637521
G00637522

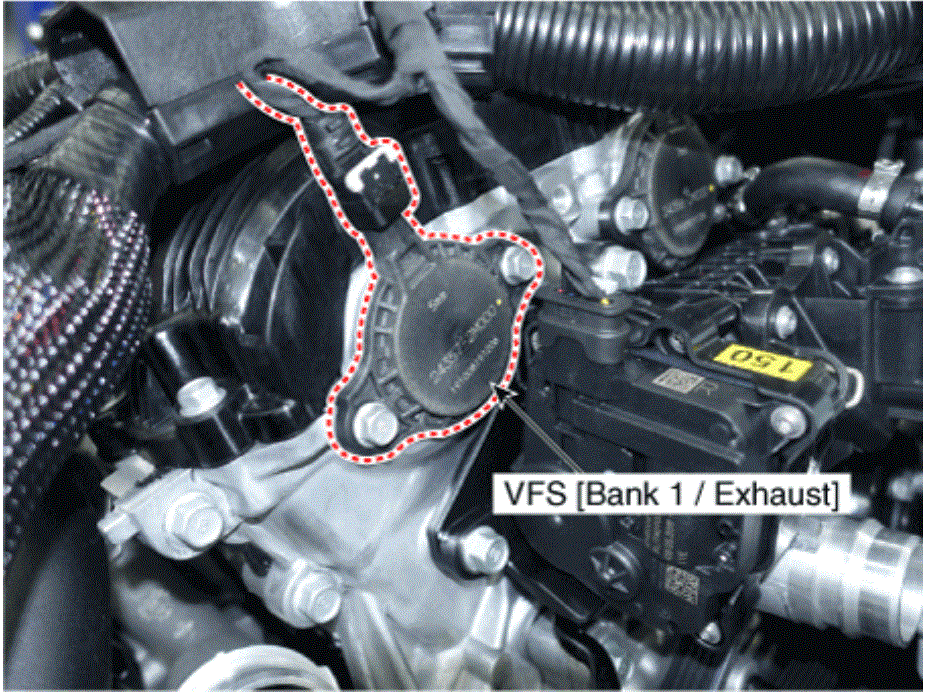

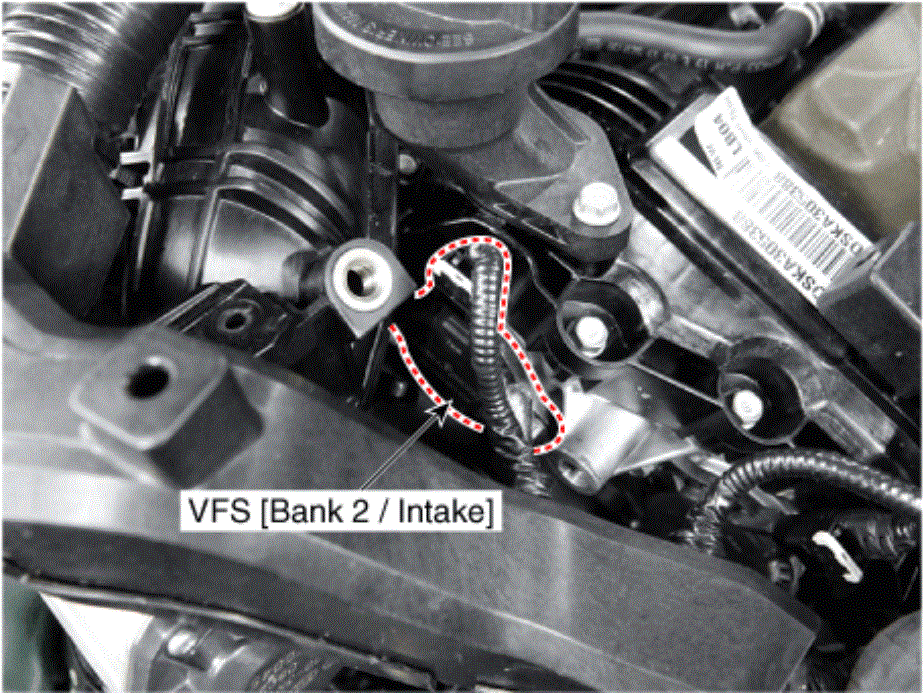

32. Variable Force Solenoid (VFS) [Bank 1 / Exhaust] 33. Variable Force Solenoid (VFS) [Bank 2 / Intake]
G00637523
G00637524

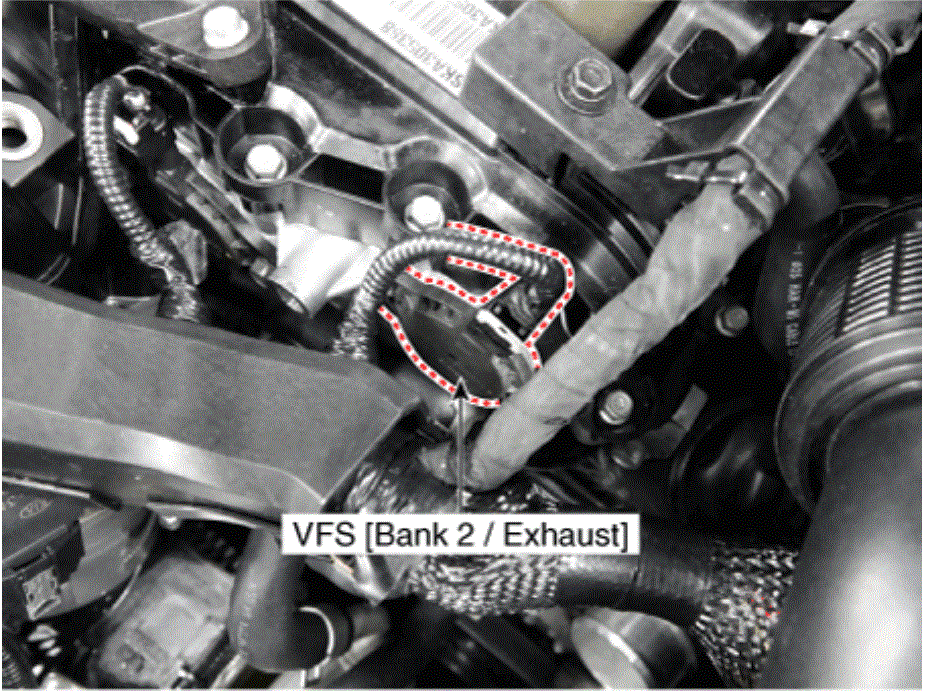

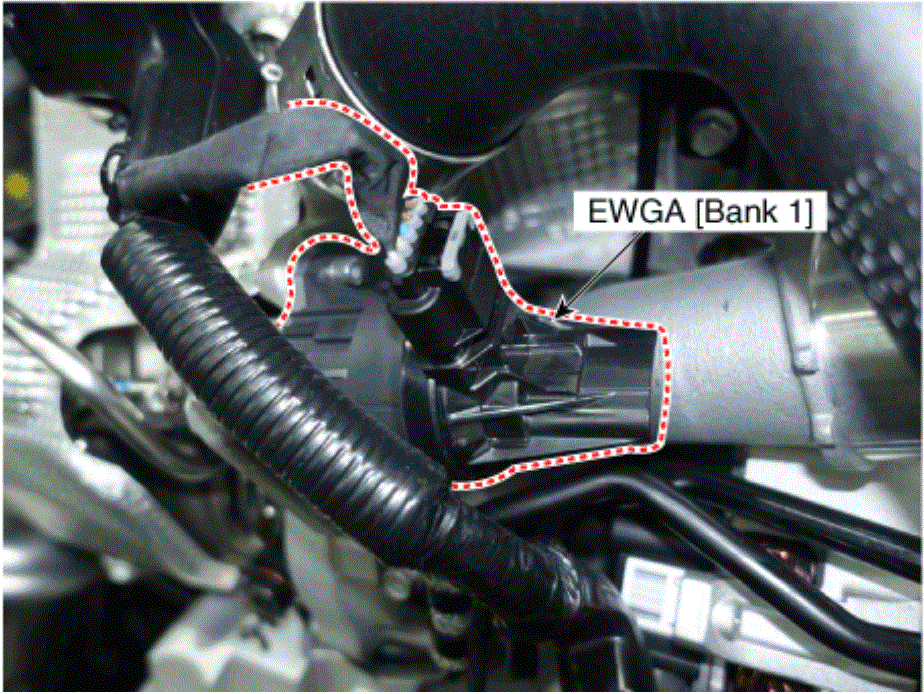

34. Variable Force Solenoid (VFS) [Bank 2 / Exhaust] 35. Electronic WGT Control Actuator (EWGA) [Bank 1]
G00637525
G00637526

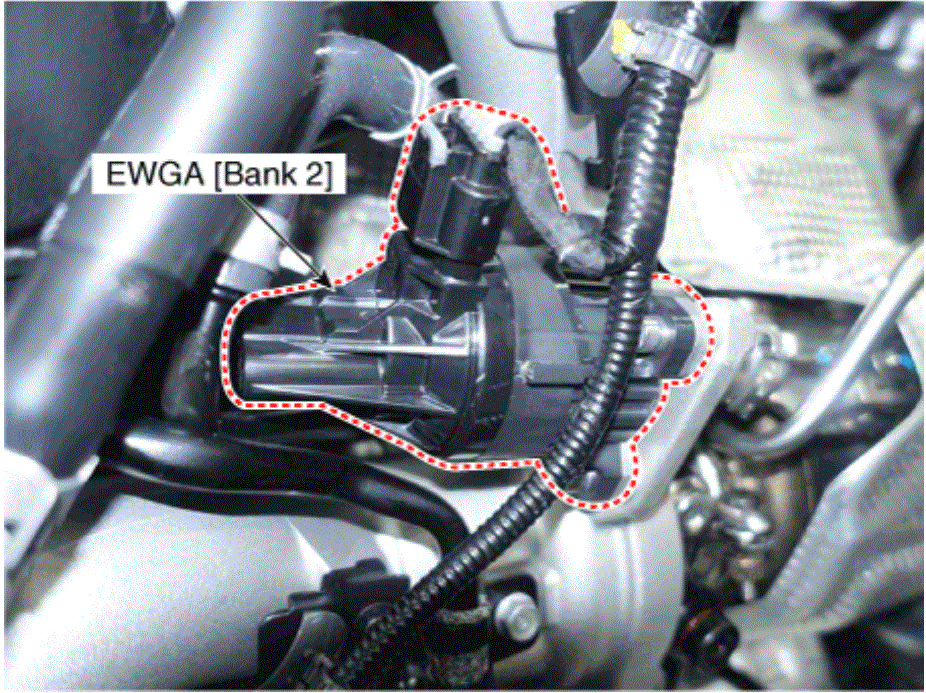

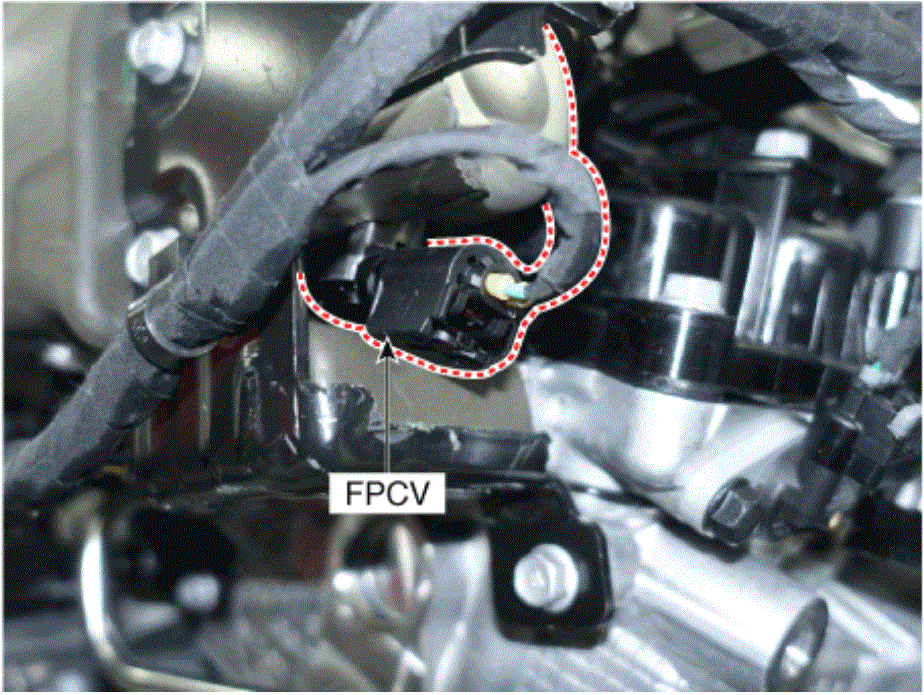

36. Electronic WGT Control Actuator (EWGA) [Bank 2] 37. Fuel Pressure Control Valve (FPCV)
G00637527
G00637528

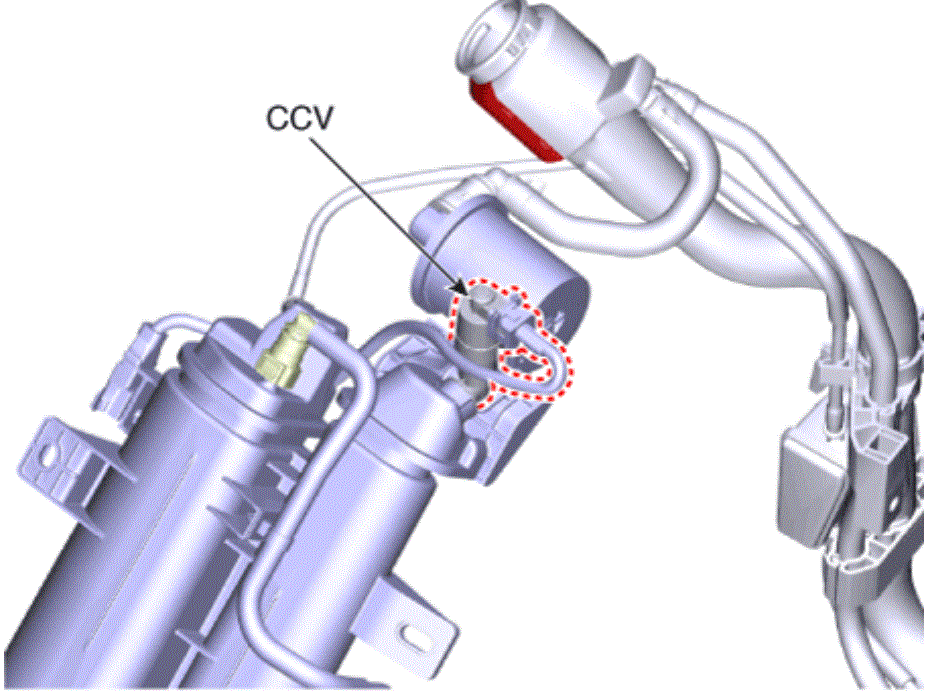

38. Canister Close Valve (CCV) 39. Ignition Coil [Bank 1]
G00637529
G00637530

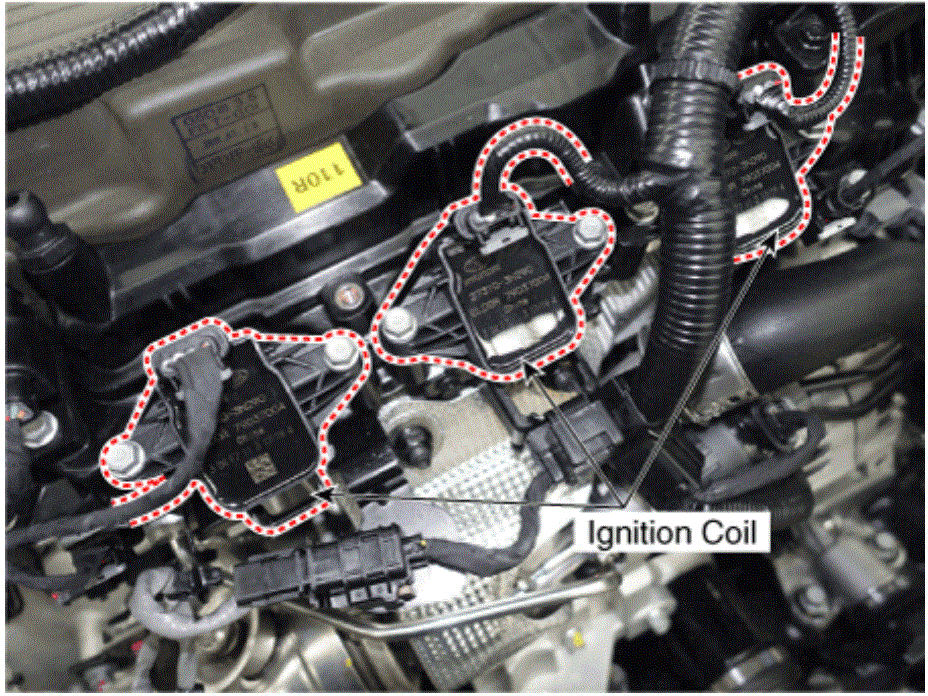

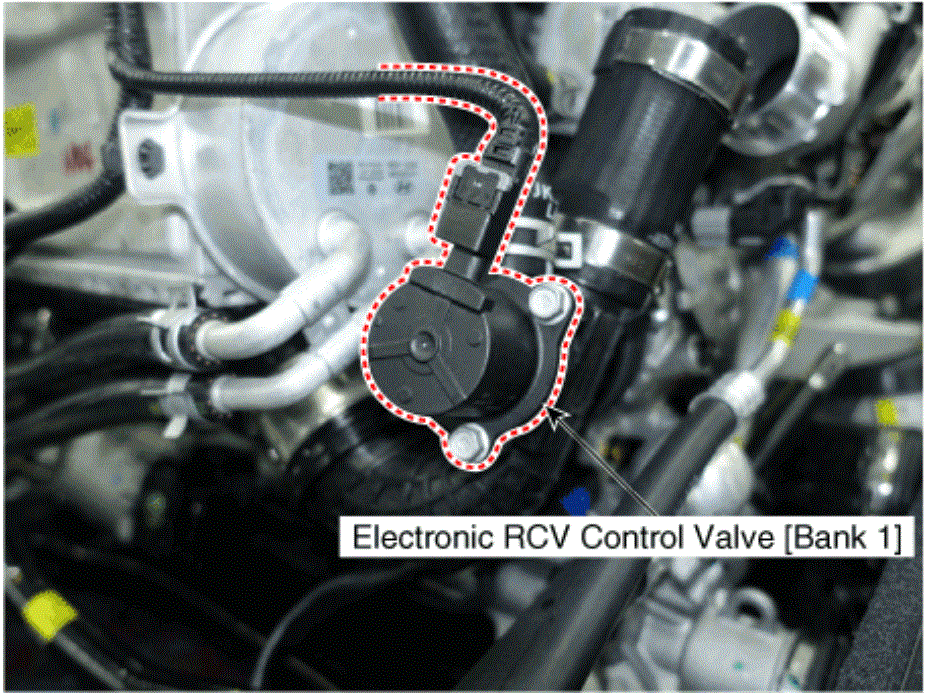

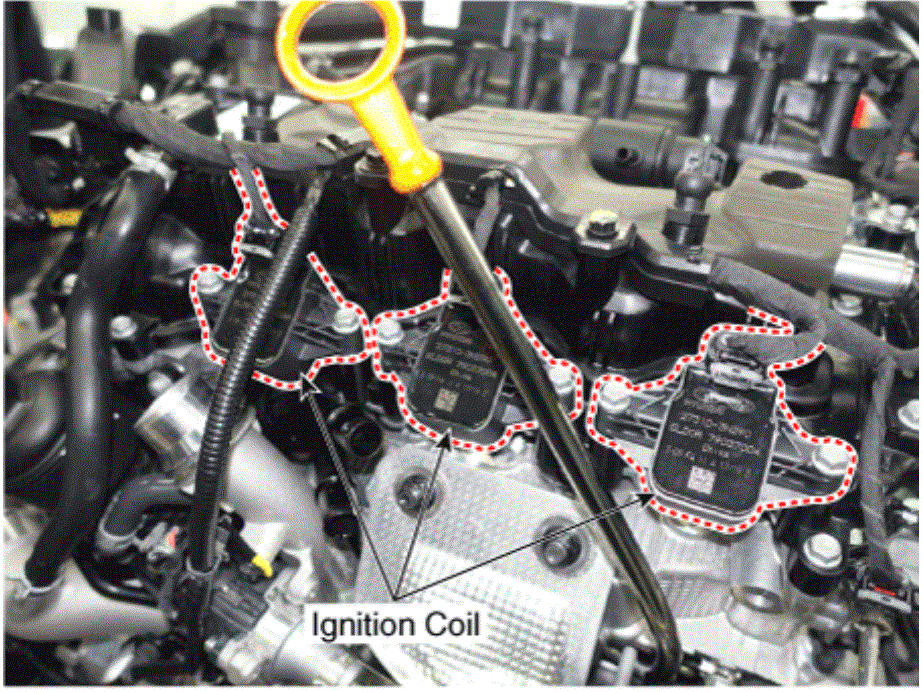

39. Ignition Coil [Bank 2] 40. Electronic RCV Control Valve [Bank 1]
G00637531
G00637532

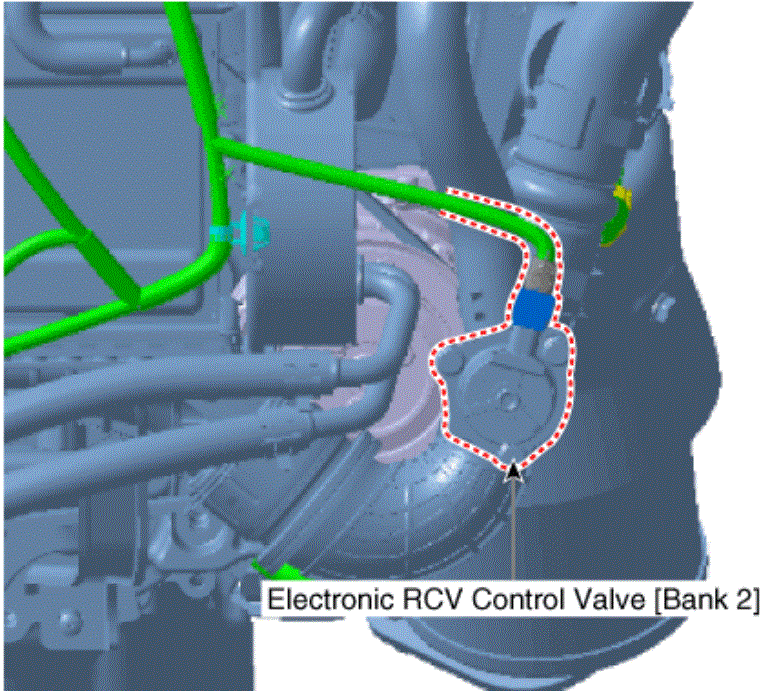

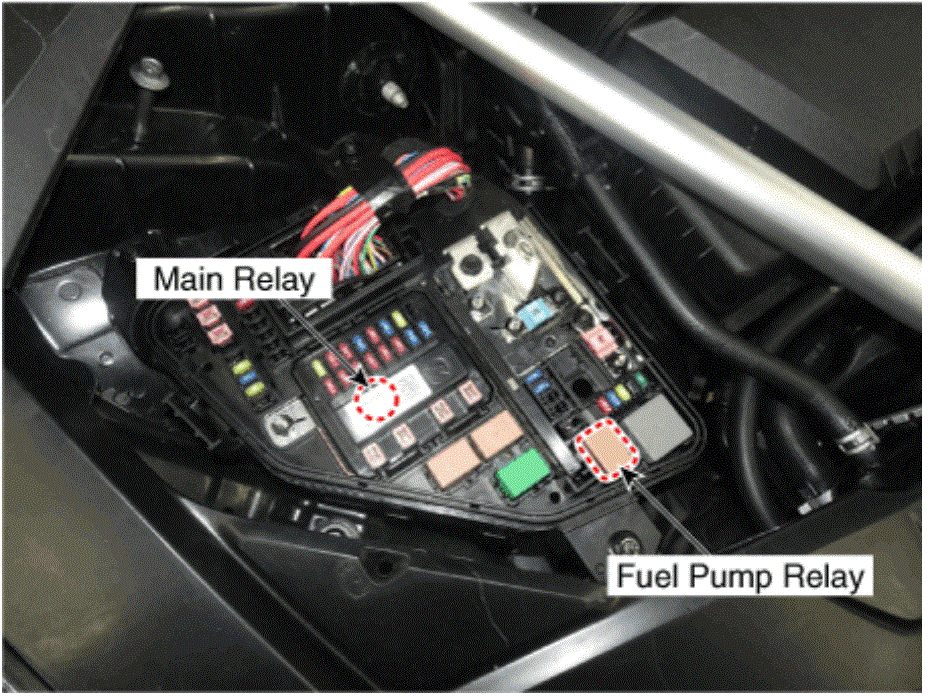

41. Electronic RCV Control Valve [Bank 2] 42. Main Relay
43. Fuel Pump Relay
G00637533
G00637534

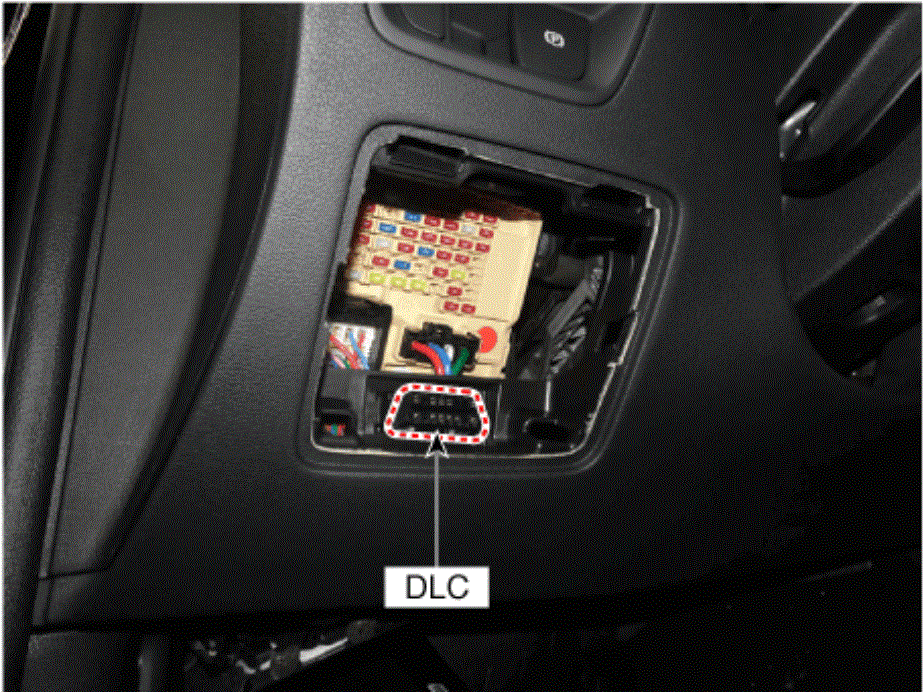

44. Magnetic Diagnostic Connector (DLC) [16-pin]
G00637535
