[EWAG Position Sensor]

Output Voltage [V]	Operating Angle [%]	Range of Rod [mm]
3.6 ~ 3.8 [Setting Position]	0	0
3.1 ~ 3.3	20	3.0
2.6 ~ 2.8	40	6.0
2.0 ~ 2.2	60	9.6
1.5 ~ 1.7	80	12.6
1.0 ~ 1.2	100	15.6

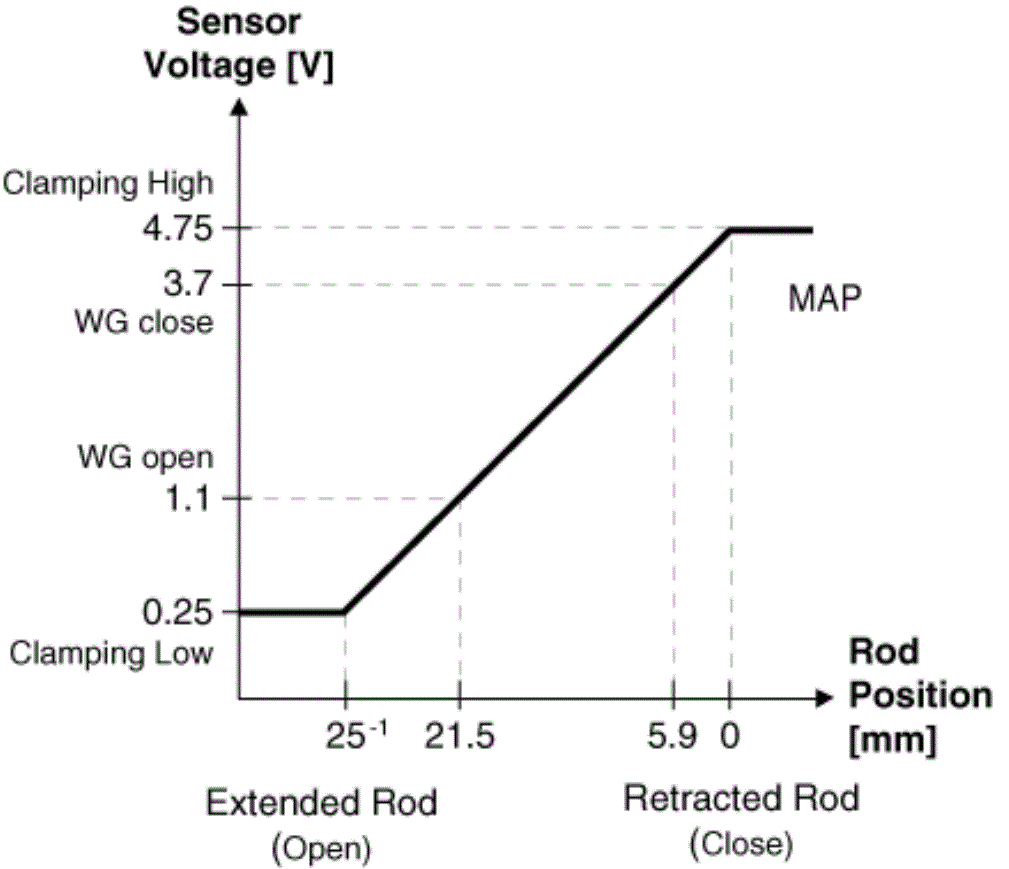

G15557098

Courtesy of HYUNDAI MOTOR AMERICA
