VIN Programming Procedure
VIN (Vehicle Identification Number) is a number that has the vehicle's information (Maker, Vehicle Type, Vehicle Line/Series, Body Type, Engine Type, Transmission Type, Model Year, Plant Location and so forth. For more information, please refer to VEHICLE IDENTIFICATION NUMBER ). When replacing an ECM, the VIN must be programmed in the ECM. If there is no VIN in ECM memory, the fault code (DTC P0630) is set.
CAUTION:
- The programmed VIN cannot be changed. When writing the VIN, confirm the VIN carefully.
- Turn the ignition switch OFF.
- Connect the diagnostic tool to Data Link Connector (DLC).
- Turn the ignition switch ON.
- "Select " Vehicle, Model Year, Engine, System".
- Select "Vehicle S/W Management".

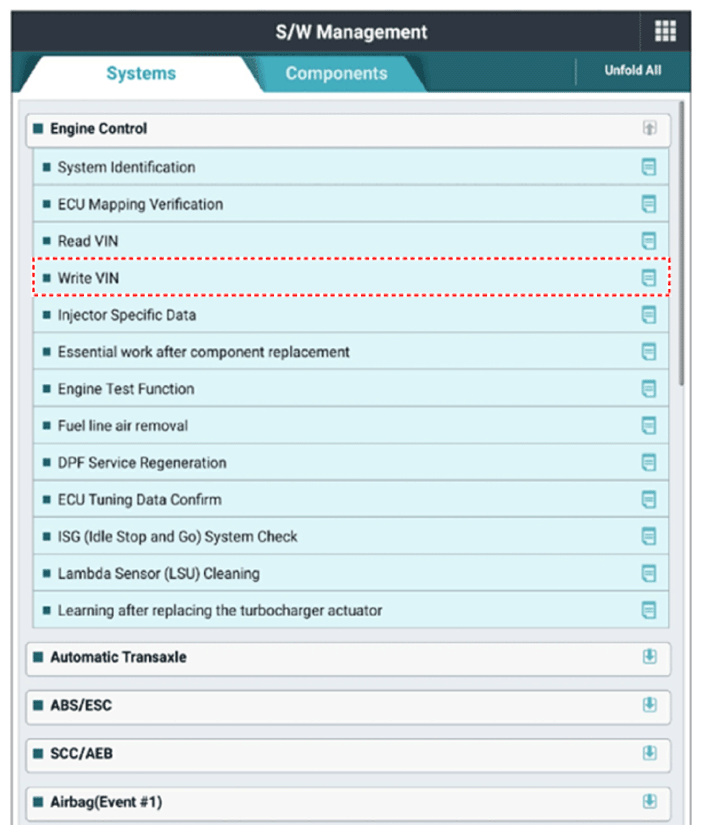

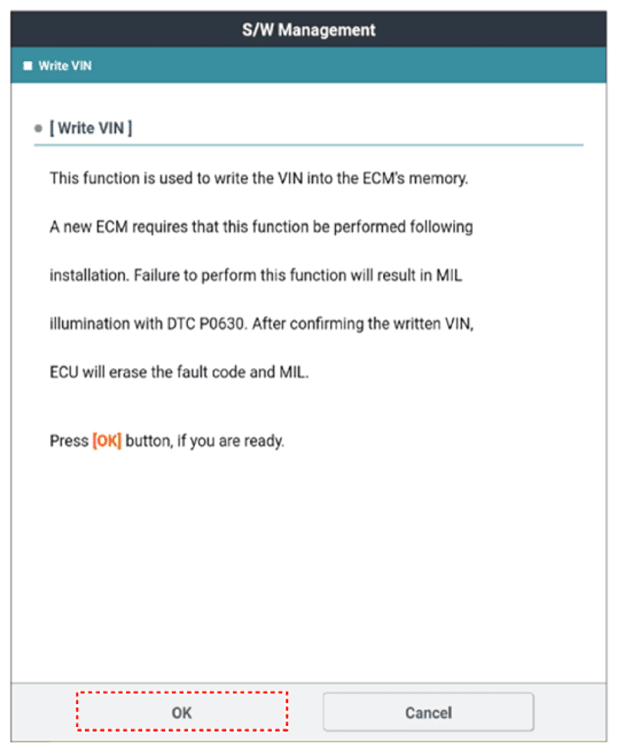

- Select "Write VIN".
