Repair Procedures: Removal

Turn ignition switch OFF and disconnect the battery negative (-) cable.
Remove the Engine Room Cover.
(Refer to ENGINE COVER Engine Mechanical System - "Engine Cover")

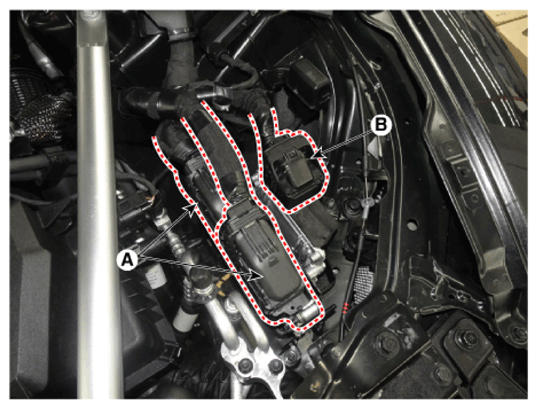

Disconnected the ECM connector (A).
Disconnected the TCM connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

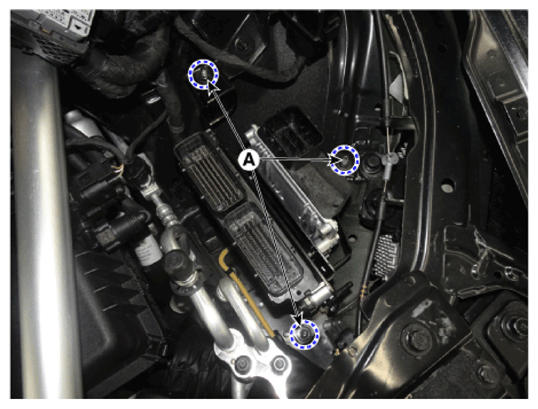

After removing the ECM bracket installation nuts (A), remove the ECM bracket assembly.
Tightening torque:

7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

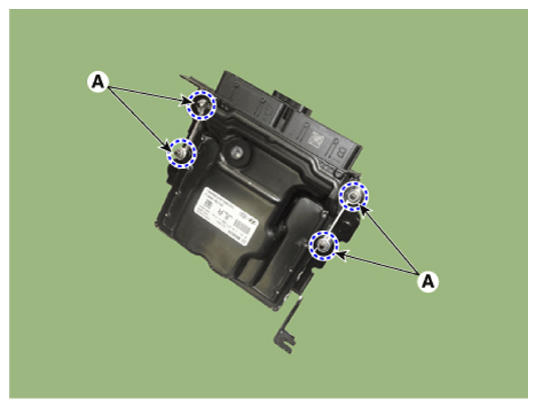

After removing the installation nuts (A), remove the ECM from the bracket.
Tightening torque:

7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
