Engine Coolant Temperature Sensor (ECTS) - Integrated Flow Control Valve Side
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the RH air duct and RH air intake hose.
(Refer to Engine Mechanical System - "INTAKE AND EXHAUST SYSTEM ")

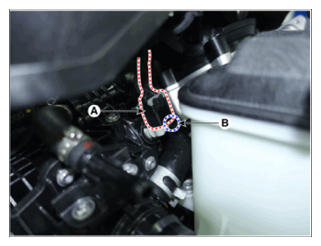

- Disconnect the engine coolant temperature sensor connector (A).
- After removing the installation bolts (B), remove the engine coolant temperature sensor.NOTE:
- Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor.
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
