[Bank 1/Sensor 2]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Use the lift to lift up the vehicle.
- Remove the engine room rear under cover.
(Refer to ENGINE ROOM REAR UNDER COVER Engine Mechanical System - "Engine Under Cover")

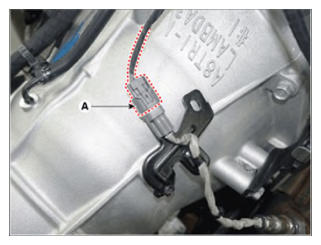

- Remove the heated oxygen sensor connector (A).

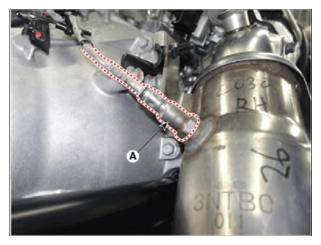

- Remove the heated oxygen sensor (A).
Tightening Torque:
35.3 - 45.1 N.m (3.6 - 4.6 kgf.m, 26.0 - 33.3 lb-ft)
