Ejector Pressure Sensor (EPS)

Pressure				Output Voltage (V) [Vref=5V]
kpa	kgf/cm²	psi	bar	Output Voltage (V) [Vref=5V]
-80	-0.82	-11.6	-0.8	4.50
-70	-0.71	-10.15	-0.7	4.03
-60	-0.61	-8.70	-0.6	3.56
-50	-0.51	-7.25	-0.5	3.09
-40	-0.41	-5.8	-0.4	2.62
-30	-0.31	-4.35	-0.3	2.15
-20	-0.2	-2.9	-0.2	1.68
-10	-0.1	-1.45	-0.1	1.21
0	0	0	0	0.74
5	0.05	0.73	0.05	0.50

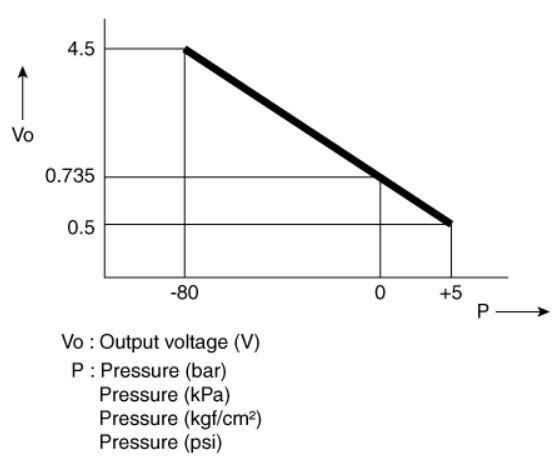

G15556926

Courtesy of HYUNDAI MOTOR AMERICA
