[Bank 2/Intake]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the LH air cleaner.
(Refer to LH AIR CLEANER ASSEMBLY Engine Mechanical System - "Air cleaner")

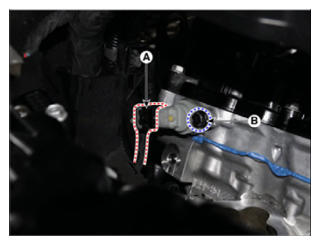

- Disconnect the camshaft position sensor connector (A).
- Remove the installation bolt (B), and then vertically remove the sensor from the cam carrier.
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
