Removal and Installation
- Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")

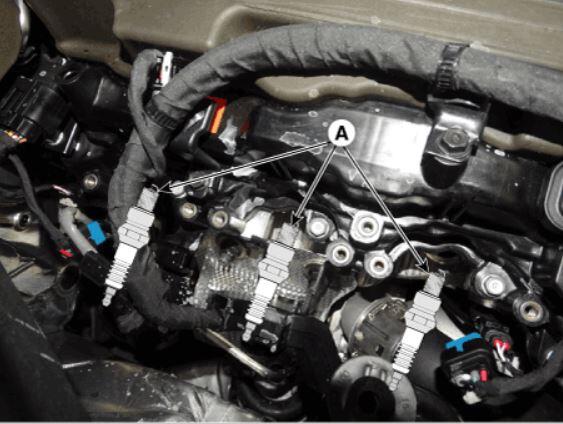

- Using a spark plug wrench, remove the spark plugs (A).
Tightening torque:
15.7 - 23.5 N.m (1.6 - 2.4 kgf.m, 11.6 - 17.4 lb-ft)

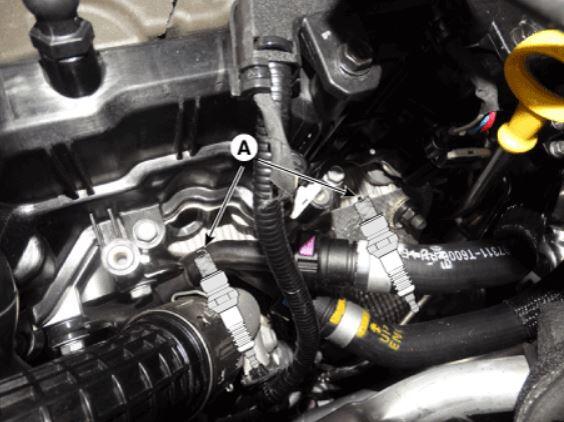

[Bank 1]

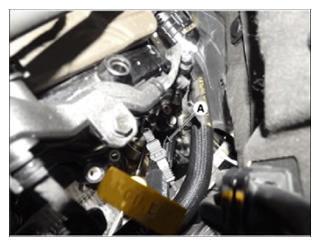

[Bank 2]
- Install in the reverse order of removal.
