Repair Procedures: Inspection

  1. Remove the trunk inner switch.

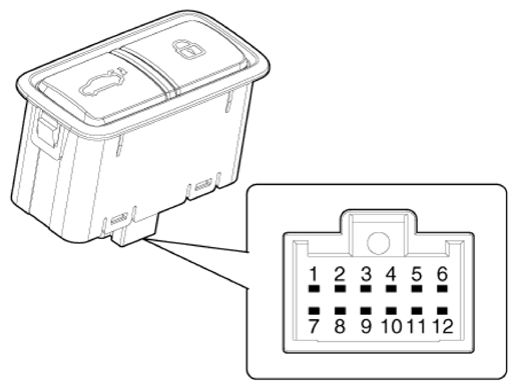

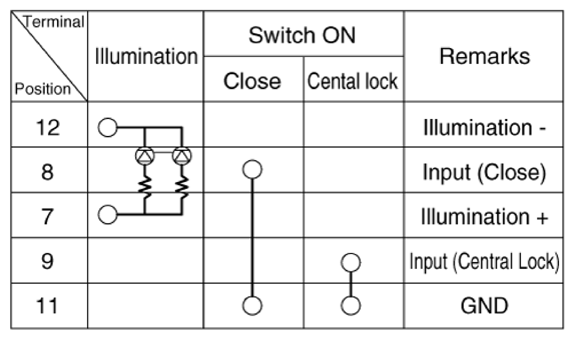

  2. Check for continuity between terminals of the trunk inner switch.
G14236254Courtesy of HYUNDAI MOTOR AMERICA
G14236255Courtesy of HYUNDAI MOTOR AMERICA
