Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

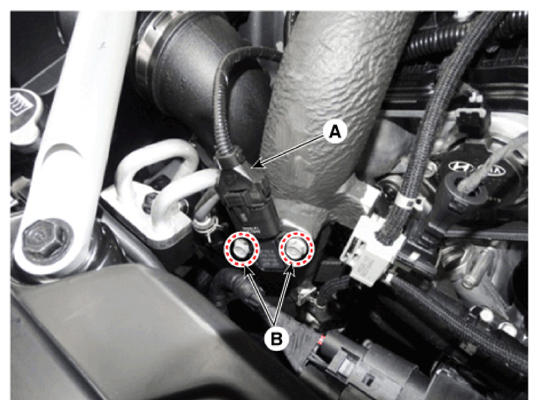

  2. Disconnect the boost pressure sensor connector (A).
  3. Remove the boost pressure sensor after removing the mounting bolts (B).
G14233092Courtesy of HYUNDAI MOTOR AMERICA
