Bank 1

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

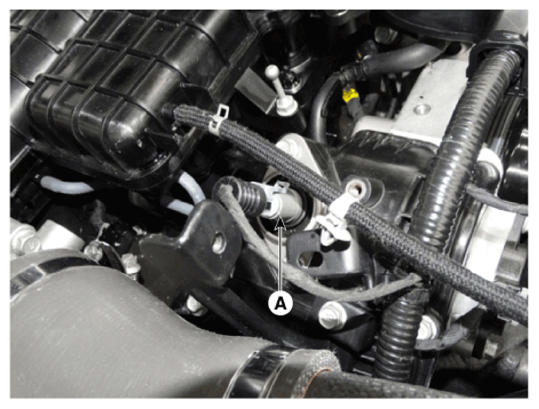

  2. Disconnect the CVVT oil control valve connector (A).
    G14233173Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the cylinder head cover.

    (Refer to Engine Mechanical System - "Repair Procedures ")

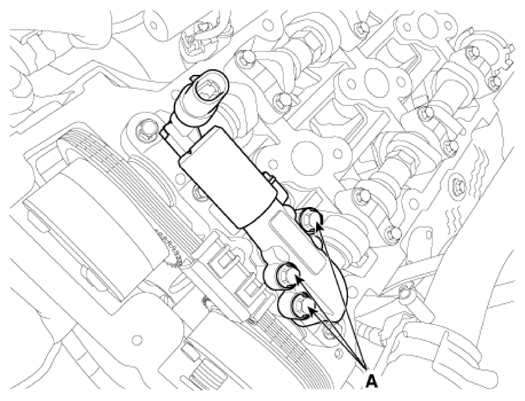

  4. Remove the CVVT oil control valve from the engine, after removing the bolts (A).
G14233174Courtesy of HYUNDAI MOTOR AMERICA
