Components Location

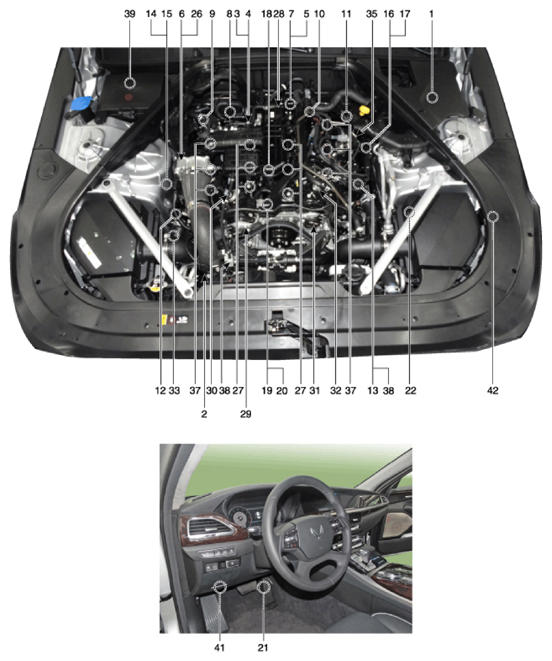

G14233058Courtesy of HYUNDAI MOTOR AMERICA

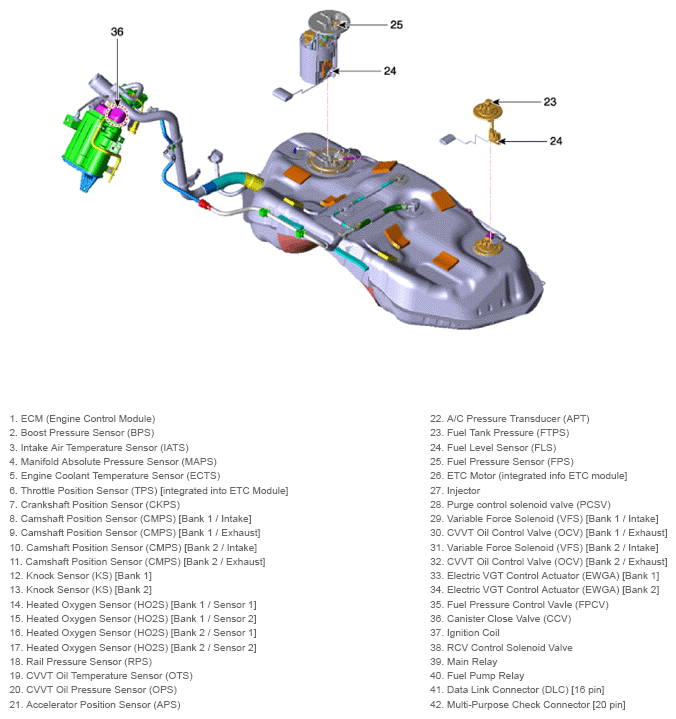

G14233059Courtesy of HYUNDAI MOTOR AMERICA

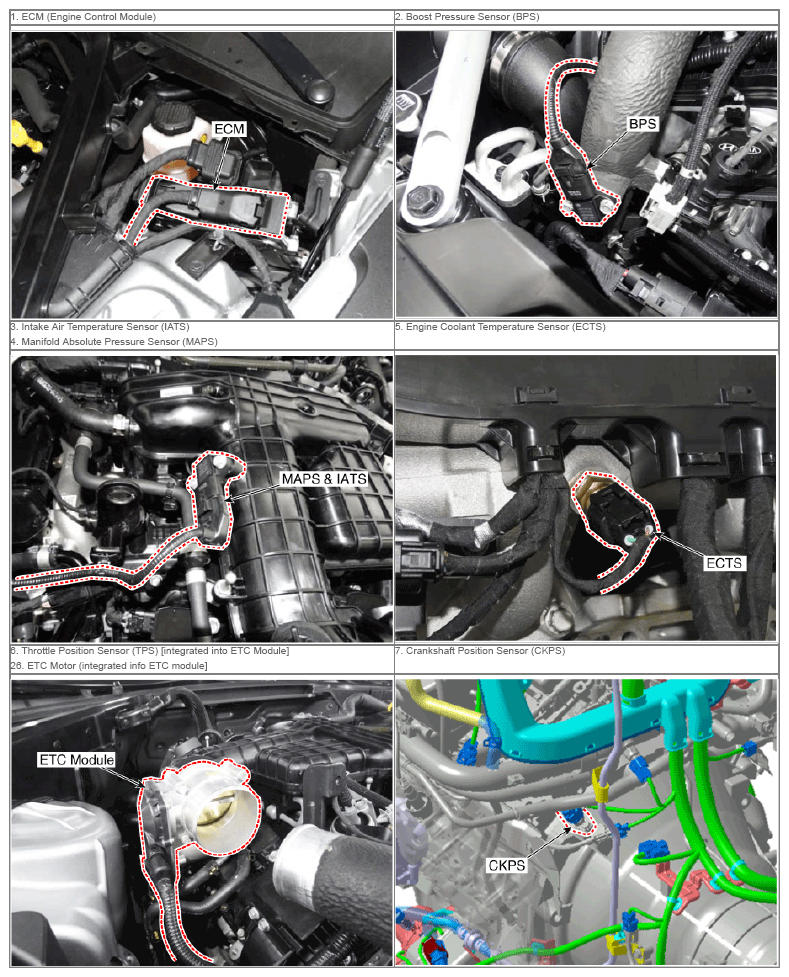

G14233060Courtesy of HYUNDAI MOTOR AMERICA

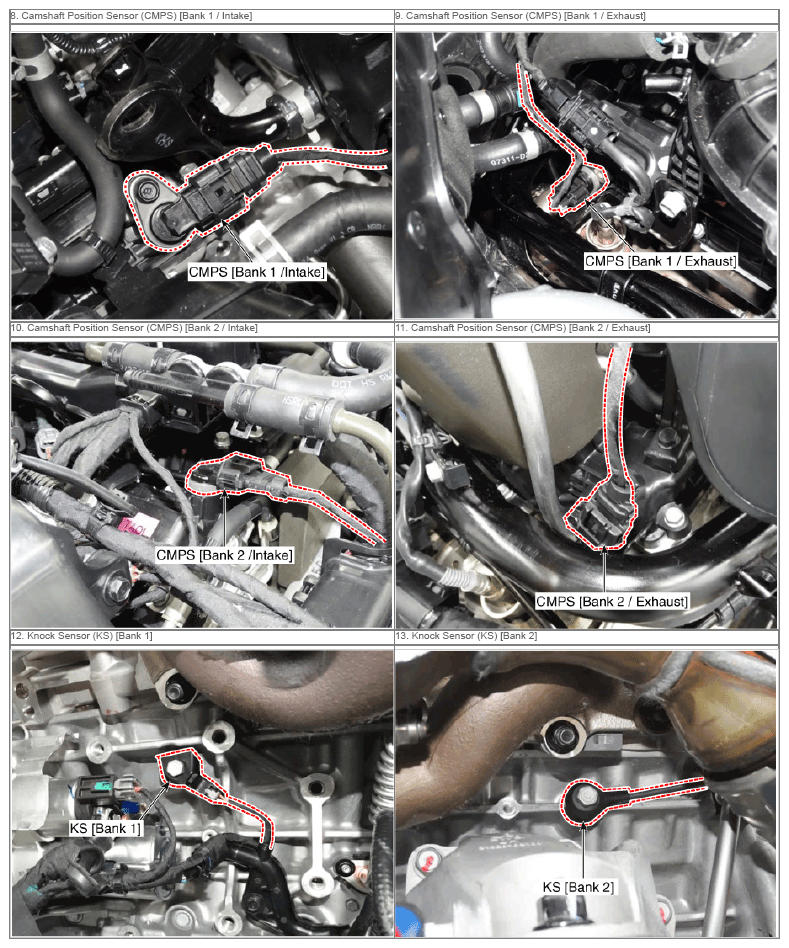

G14233061Courtesy of HYUNDAI MOTOR AMERICA

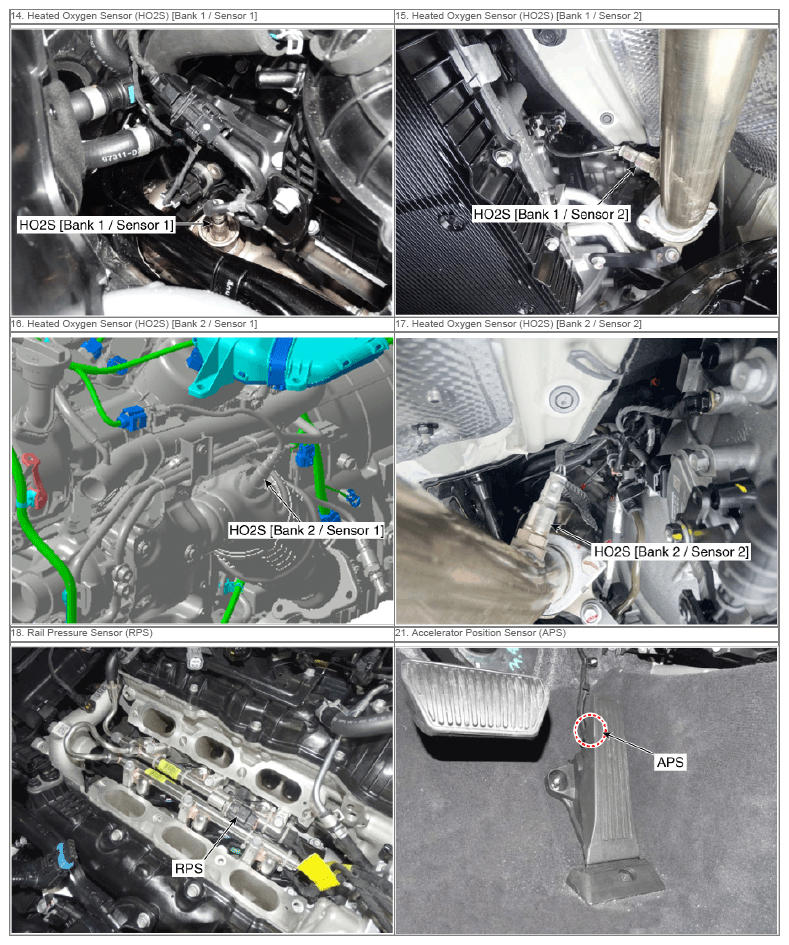

G14233062Courtesy of HYUNDAI MOTOR AMERICA

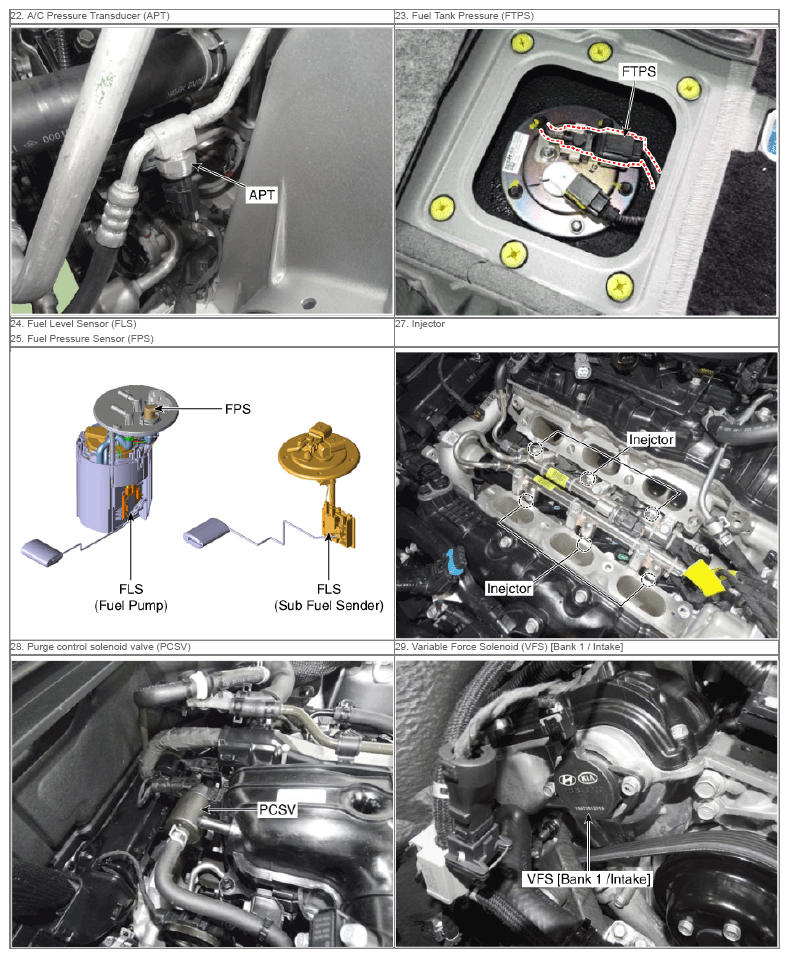

G14233063Courtesy of HYUNDAI MOTOR AMERICA

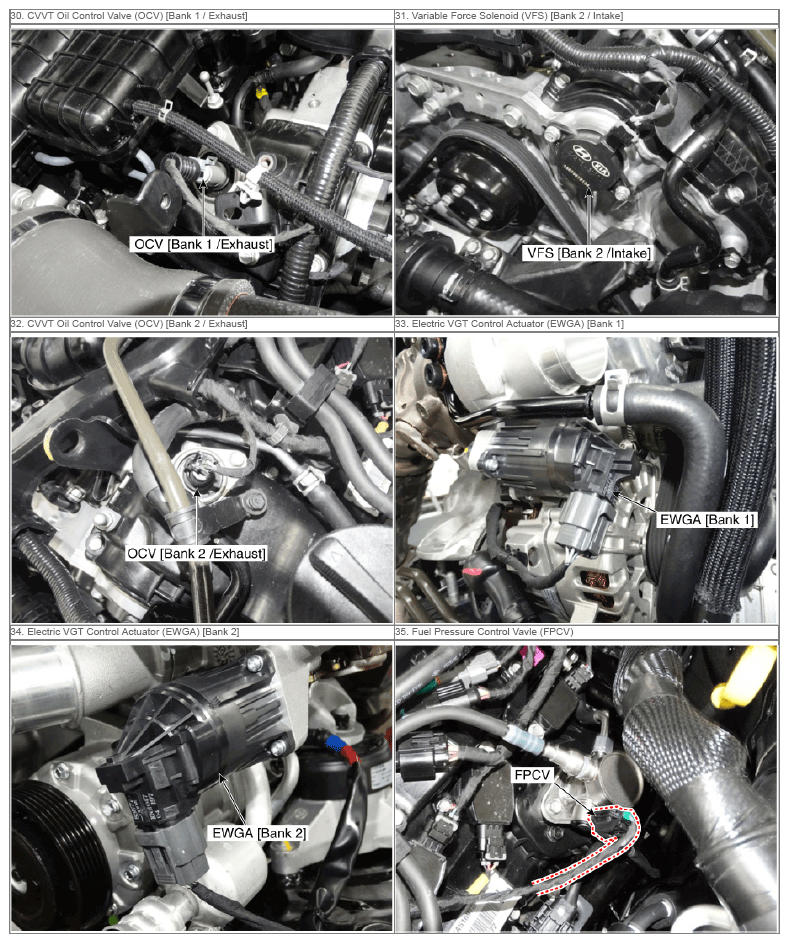

G14233064Courtesy of HYUNDAI MOTOR AMERICA

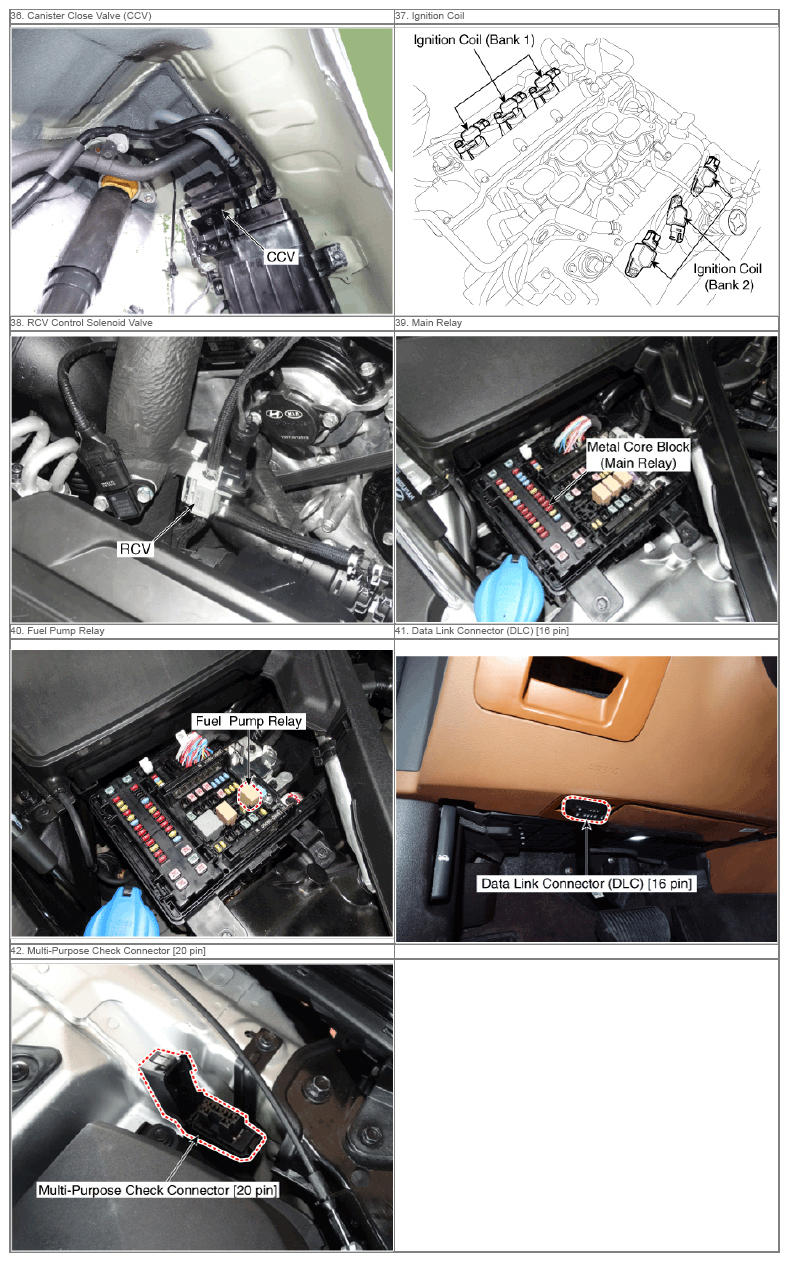

G14233065Courtesy of HYUNDAI MOTOR AMERICA
