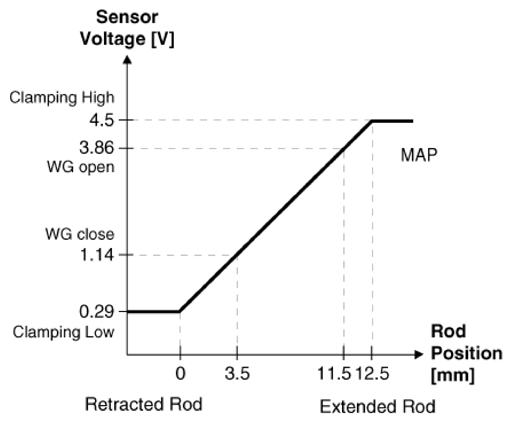

EWAG Position Sensor

Output Voltage [V]	Operating Angle [°]	Range of Rod [mm], reference
1.04 - 1.24 [Setting Position]	0	0
1.72 - 1.92	25	2.0
2.13 - 2.33	40	3.2
2.67 - 2.87	60	4.8
3.22 - 3.42	80	6.4
3.76 - 3.96	100	8.0

G14233182

Courtesy of HYUNDAI MOTOR AMERICA
