Repair Procedures: Installation
WARNING:

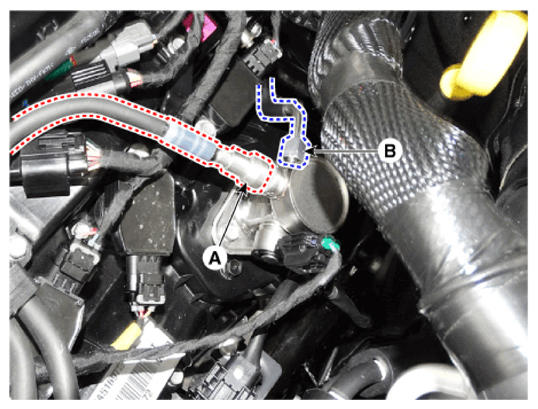

- Be sure to check the low pressure fuel line quick-connector (A) is completely connected to the high pressure fuel pump until a confirmation 'click' sound is heard.
- Be sure to re-check the low pressure fuel hose is completely connected to the high pressure fuel pump by pulling it after connecting.
- Be sure to install the high pressure fuel pipe (B) with the specified torques.
- Securely inspect leakage of all fuel line connection parts at engine start condition.
CAUTION:
- Before installing the high pressure fuel pump, position the roller tappet in the lowest position by rotating the crankshaft. Otherwise the installation bolts may be broken because of tension of the pump spring.
CAUTION:
- Be careful not to attach to foreign substances on high pressure fuel pump head cover insertion unit.
CAUTION:
- Do not reuse the used bolt.
CAUTION:
- Do not reuse the used high pressure fuel pipe.
CAUTION:
- When tightening the installation bolts of the high pressure fuel pump, tighten in turn the bolts in small step (0.5 turns) after tightening them with hand-screwed torque.
CAUTION:
- Install the component with the specified torques.
CAUTION:
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
CAUTION:

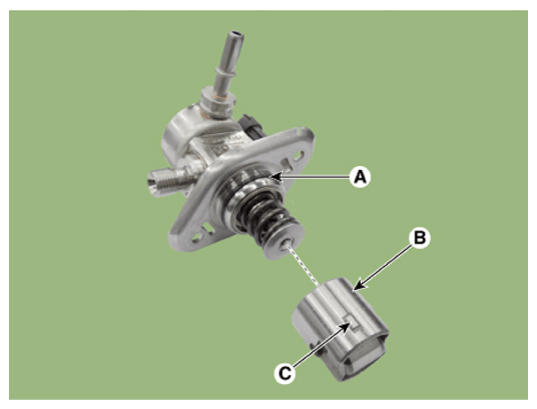

- Apply engine oil to the O-ring (A) of the high pressure fuel pump, the roller tappet (B), and the protrusion (C). Also apply engine oil to the groove on the location where the protrusion (C) is installed.
- Install in the reverse order of removal.
NOTE:

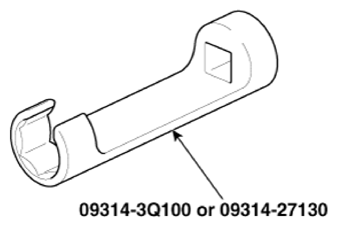

- Use the special service tool [SST No.: (09314-3Q100) or (09314-27130)] to install the high pressure fuel pipe.
High pressure fuel pump installation bolt:
12.8 - 14.7 N.m (1.3 - 1.5 kgf.m, 9.4 - 10.9 lb-ft)
High pressure fuel pipe installation nut:
29.4 - 35.3 N.m (3.0 - 3.6 kgf.m, 21.7 - 26.0 lb-ft)
High pressure fuel pipe bracket installation bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
