Knock Sensor #1 (Bank 1)
- Remove the LH engine mounting support bracket.
(Refer to Engine Mechanical System - "ENGINE MOUNTING ")

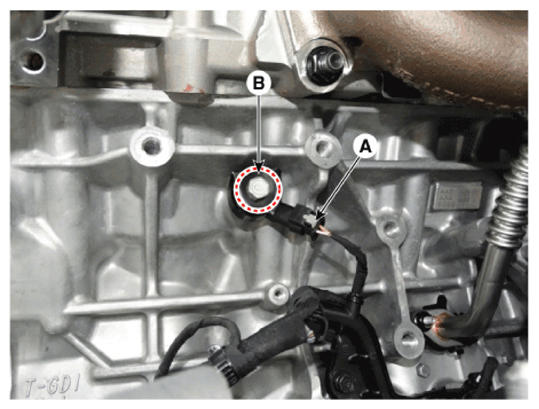

- Disconnect the knock sensor connector (A).
- Remove the installation bolt (B), and then remove the sensor from the cylinder block.
