Knock Sensor #2 (Bank 2)

  1. Remove the RH engine mounting support bracket.

    (Refer to Engine Mechanical System - "ENGINE MOUNTING ")

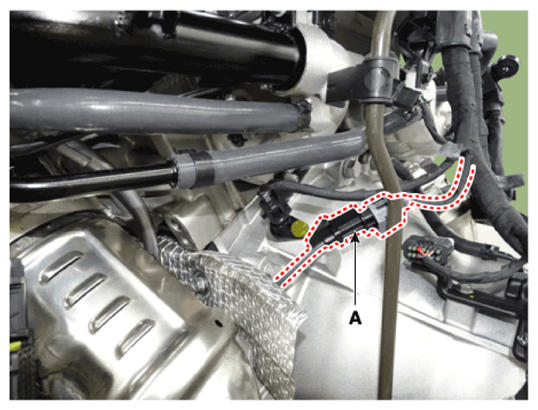

  2. Disconnect the knock sensor connector (A).
    G14233119Courtesy of HYUNDAI MOTOR AMERICA

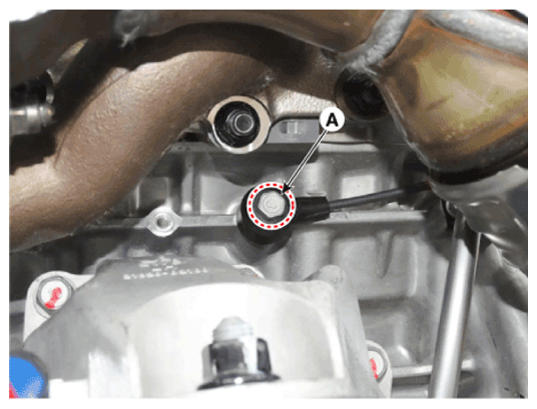

  3. Remove the installation bolt (A), and then remove the sensor from the cylinder block.
G14233120Courtesy of HYUNDAI MOTOR AMERICA
