Manifold Absolute Pressure Sensor (MAPS): Specifications: Specification

Pressure (kPa) Output Voltage (V)
20.0 0.5
160 2.5
300 4.5

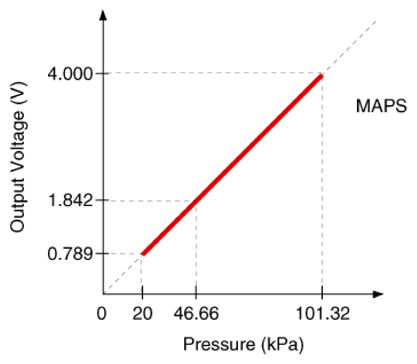

G14233097Courtesy of HYUNDAI MOTOR AMERICA
