Repair Procedures: Inspection: Notes

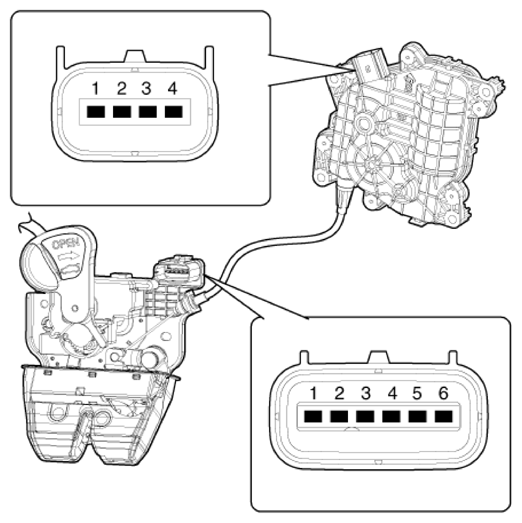

  1. Disconnect the power latch and cinching connectors.
    G14236248Courtesy of HYUNDAI MOTOR AMERICA

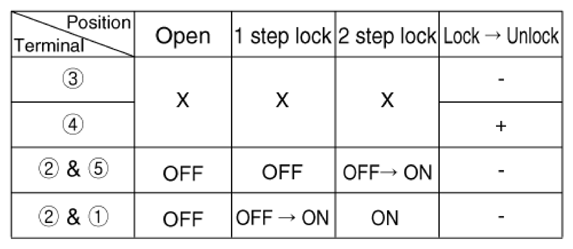

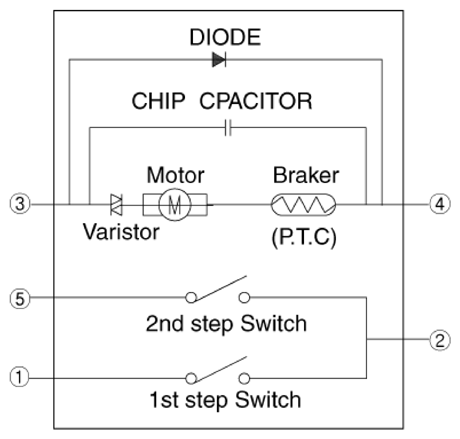

  2. Connect the power latch terminals directly to battery voltage (12V) and check that the motor operates smoothly.
    G14236249Courtesy of HYUNDAI MOTOR AMERICA
    G14236250Courtesy of HYUNDAI MOTOR AMERICA

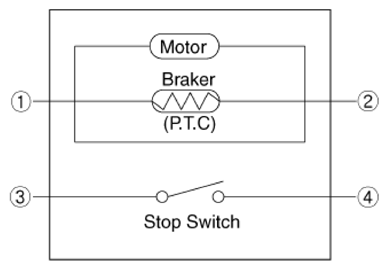

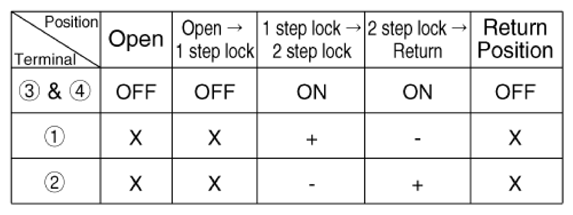

  3. Connect the power cinching terminals directly to battery voltage (12V) and check that the motor operates smoothly.
G14236251Courtesy of HYUNDAI MOTOR AMERICA
G14236252Courtesy of HYUNDAI MOTOR AMERICA
