CVVT Oil Control Valve (Bank 1/Exhaust)

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.

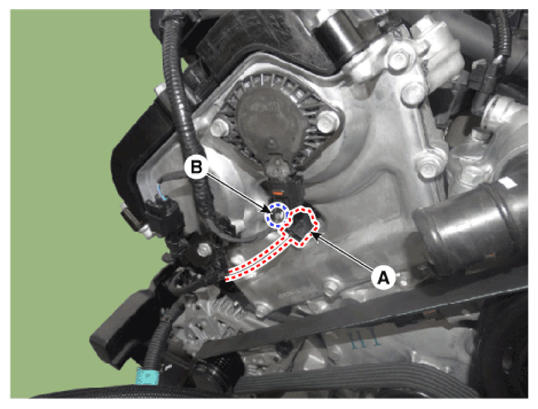

  2. Disconnect the OCV connector.
  3. Remove the mounting bolt (B), and then remove the OCV from the engine.
G14237135Courtesy of HYUNDAI MOTOR AMERICA
