Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the fuel tank air filter.
(Refer to Emission Control System - "FUEL TANK AIR FILTER ")

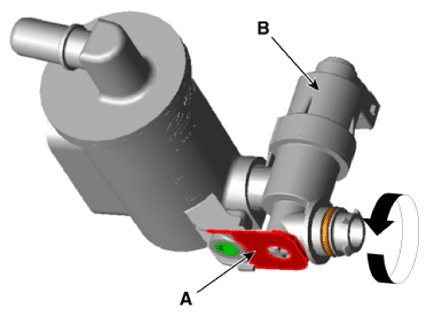

- Release the fixing hooks (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
