Components Location

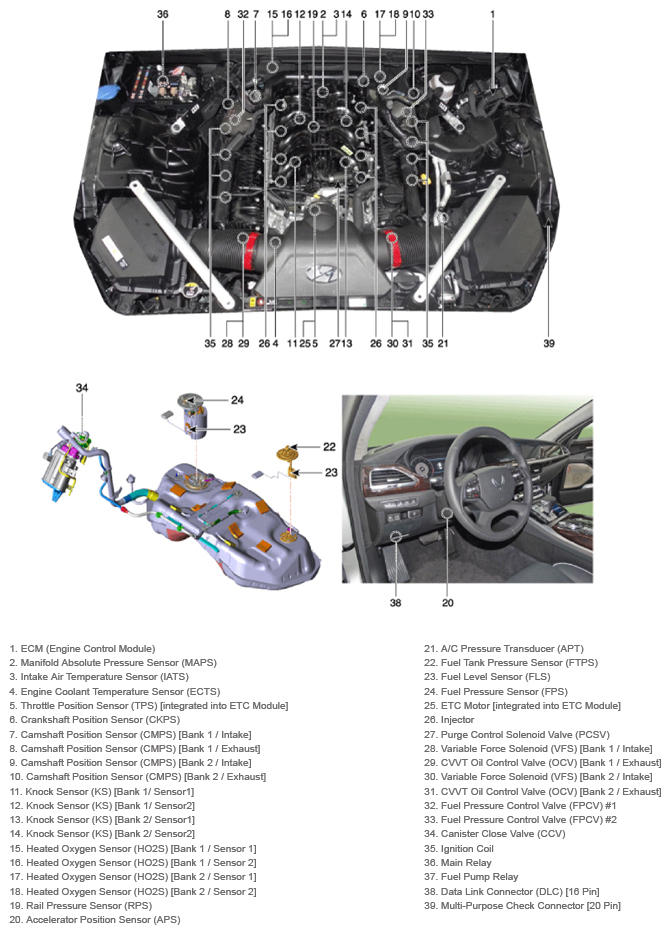

G14237035Courtesy of HYUNDAI MOTOR AMERICA

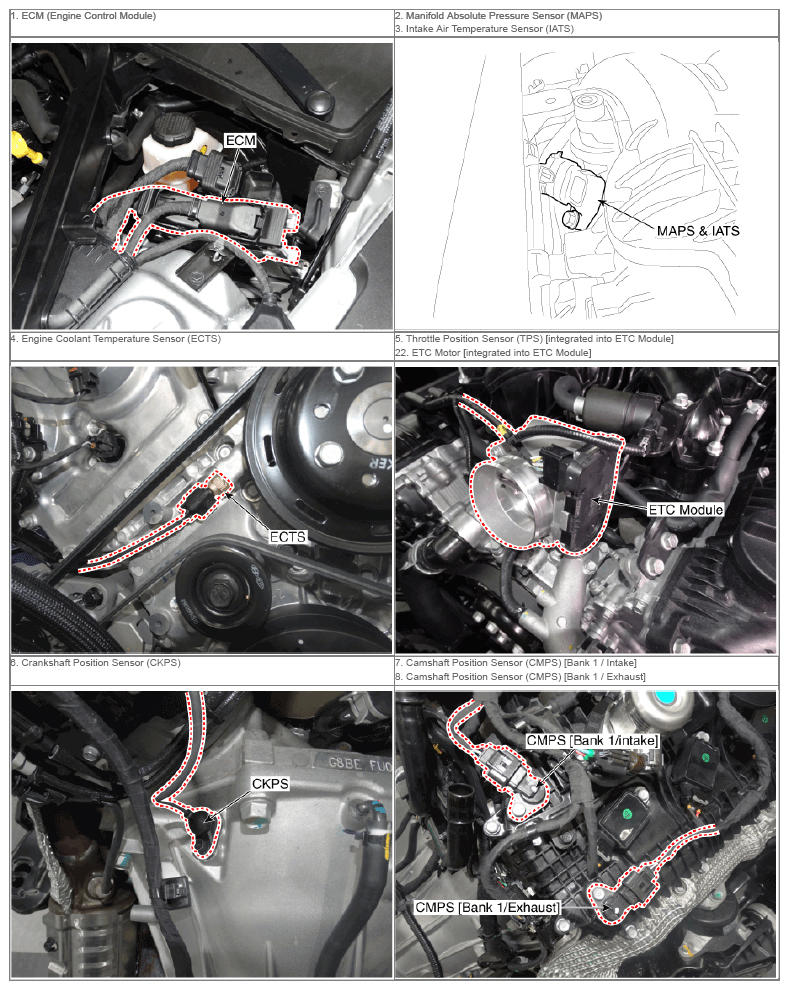

G14237036Courtesy of HYUNDAI MOTOR AMERICA

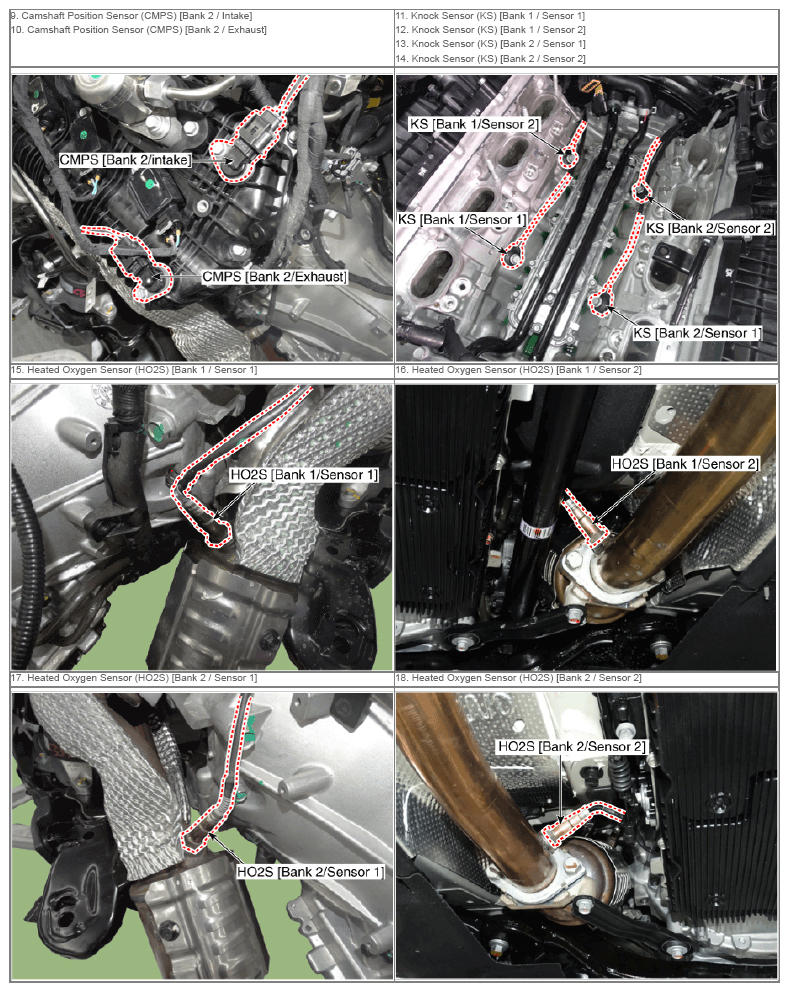

G14237037Courtesy of HYUNDAI MOTOR AMERICA

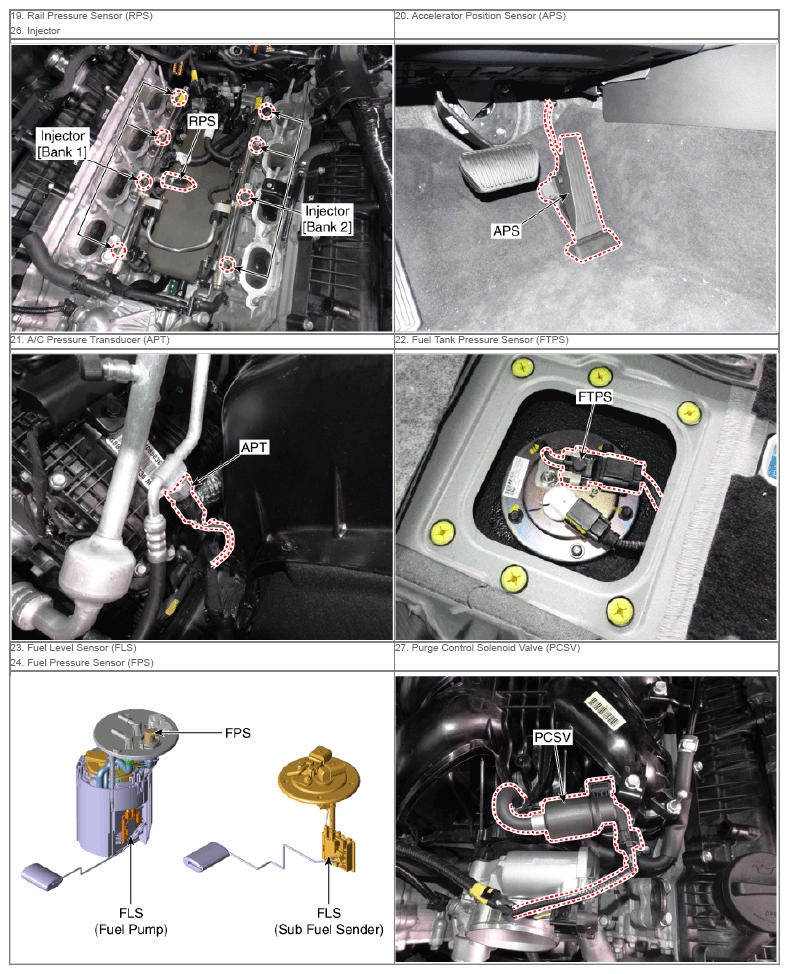

G14237038Courtesy of HYUNDAI MOTOR AMERICA

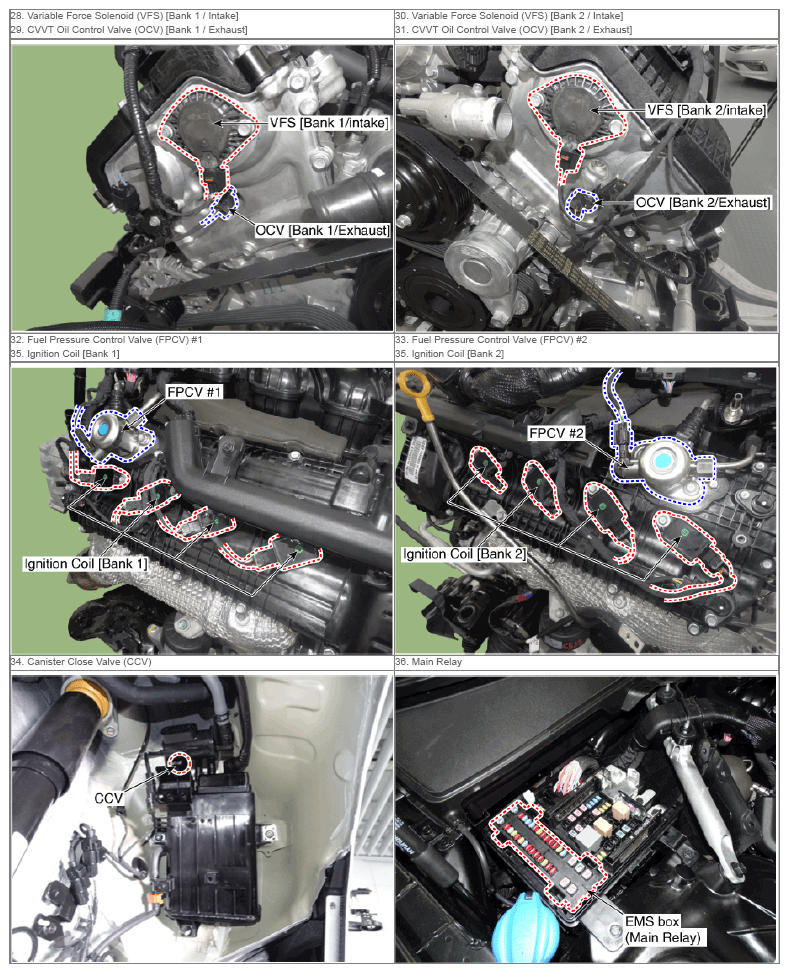

G14237039Courtesy of HYUNDAI MOTOR AMERICA

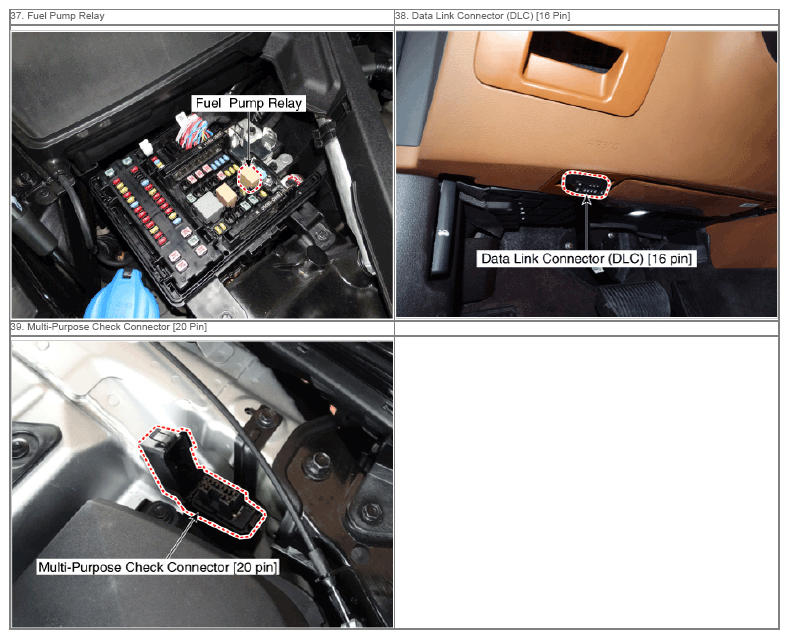

G14237040Courtesy of HYUNDAI MOTOR AMERICA
