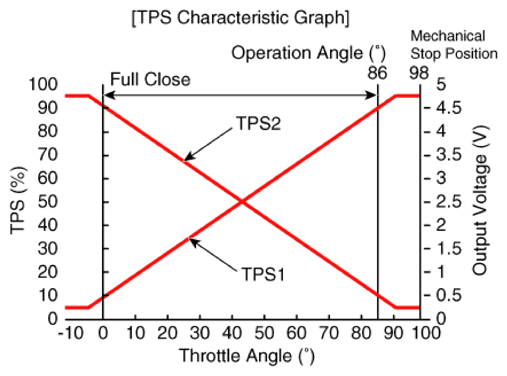

ETC Electronic Throttle Control System: Specifications: Specification: TPS2

Throttle angle TPS (%) Output Voltage (V) [Vref=5V]
C.T 57 - 61 2.85 - 3.05
W.O.T 0.6 - 8 0 - 0.4
G14237052Courtesy of HYUNDAI MOTOR AMERICA
