Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

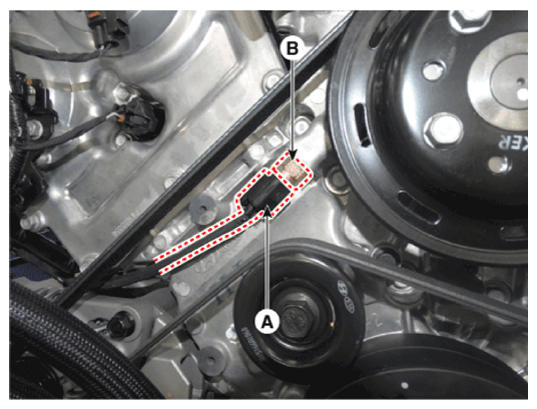

2. Disconnect the engine coolant temperature sensor connector (A), and then remove the engine coolant temperature sensor (B).

   Courtesy of HYUNDAI MOTOR AMERICA

3. Supplement the engine coolant.

(Refer to Engine Mechanical System - "Engine Coolant Refilling And Bleeding ")
