Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the rear seat cushion assembly.
(Refer to Body - "REAR SEAT ASSEMBLY ")

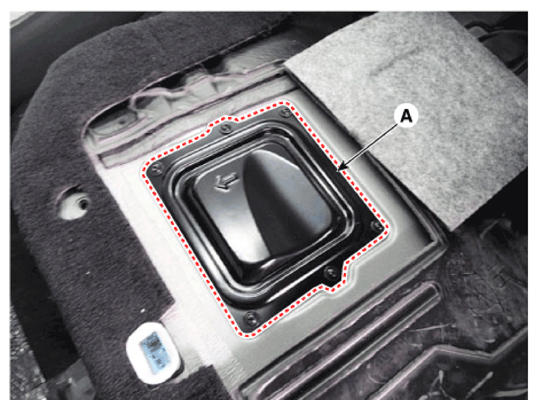

- Remove the sub fuel sender service cover (A) after removing installation screw.

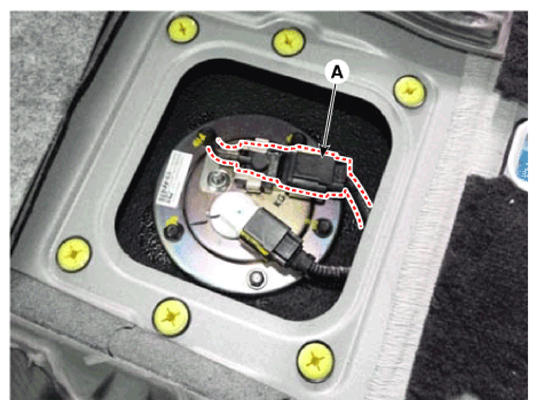

- Disconnect the fuel tank pressure sensor connector (A).
- Remove the fuel tank pressure sensor from the sub fuel sender after loosening nut.
