Bank 1/Sensor 2

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Remove the rear under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

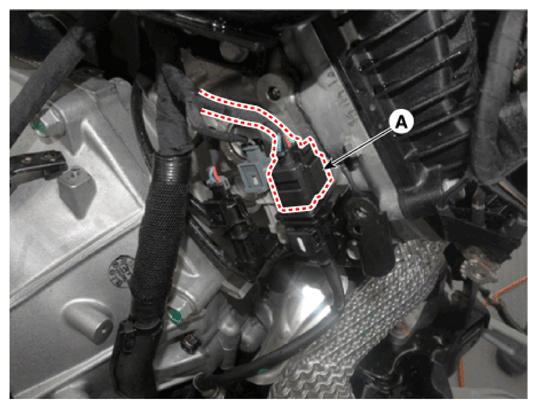

  4. Disconnect the heated oxygen sensor connector (A).
    G14237094Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the heated oxygen sensor (A).
G14237095Courtesy of HYUNDAI MOTOR AMERICA
