Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the delivery pipe assembly.

    (Refer to Fuel Delivery System - "DELIVERY PIPE ")

  3. Disconnect the knock sensor connector (A).

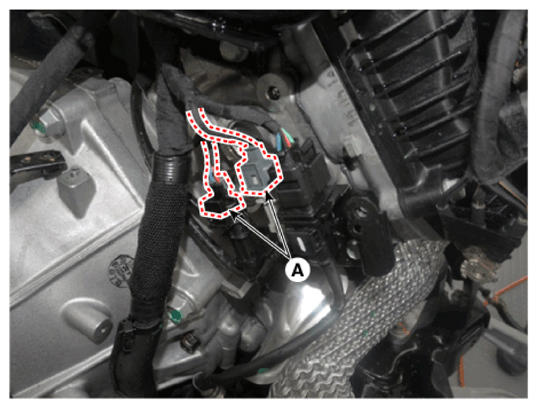

    [Bank 1]

    G14237086Courtesy of HYUNDAI MOTOR AMERICA

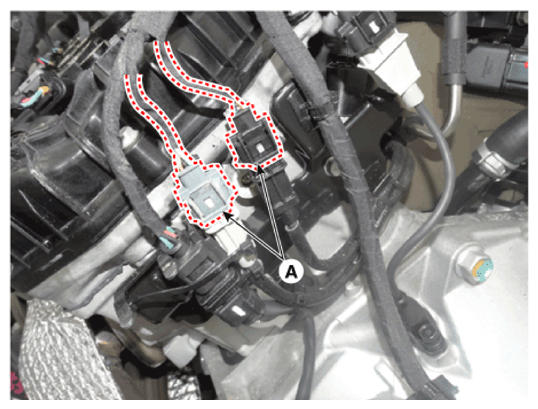

    [Bank 2]

    G14237087Courtesy of HYUNDAI MOTOR AMERICA

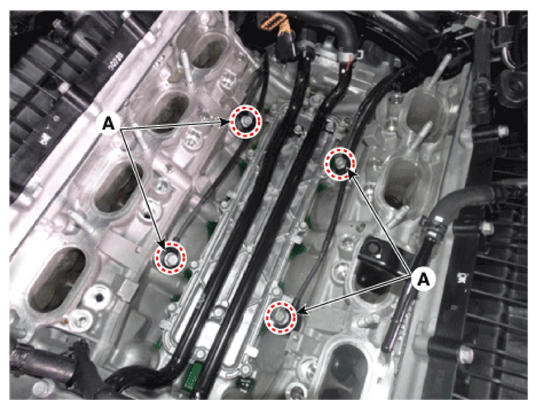

  4. Remove the installation bolt (A), and then remove the sensor from the cylinder block.
G14237088Courtesy of HYUNDAI MOTOR AMERICA
