Front Alignment: Toe

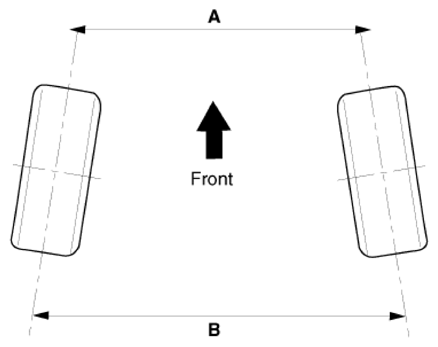

| Item | Description |
|---|---|
| A-B < 0 | Positive (+) toe (toe in) |
| A-B > 0 | Negative (-) toe (toe out) |
NOTE:
- Toe-in adjustment should be made by turning the right and left tie rods with the same torque
- When adjusting toe-in, loosen the outer bellows clip to prevent the bellows clip from being twisted.
- After the adjustment, tighten the tie rod end lock nuts firmly and reinstall the bellows clip.
- Adjust each toe-into be within the range of ±0.1°.
Toe
Total: 0.2°±0.2°
Individual: 0.1°±0.1°
Tightening torque
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
NOTE:
- Make sure that each toe value remains within ±0.1° of the other. If the difference in the toe value between the right and left wheel exceeds ±0.2°, re-adjust the toe accordingly.

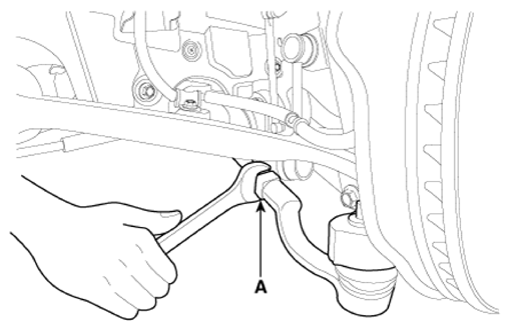

- After adjusting the toe, apply the standard torque to tighten the tie rod adjustment nut (A).
- Rotate the tie rod buckle to adjust the toe. Turn the tie rod towards the rear of the vehicle to reduce the toe of the left front wheel. Be sure to make equal adjustments to the toe on both the right and left wheels by turning the tie rod.
