Wheel Runout

  1. Jack up the vehicle and support it with jack stands.

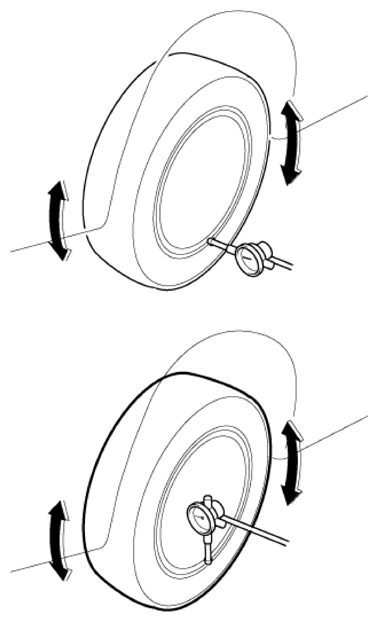

  2. Measure the wheel runout with a dial indicator as illustrated.
  3. Replace the wheel if the wheel runout exceeds the limit.
Limit Radial Axial
Runout mm Aluminum 0.3 0.3
G14210017Courtesy of HYUNDAI MOTOR AMERICA
