Gasoline 5.0

  1. IG Key "ON".
  2. Connect the GDS in the vehicle.

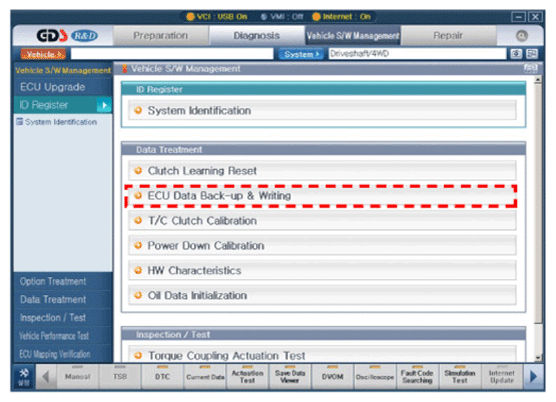

  3. To read the transfer case data in old ITA (ECU), select "ECU Data Back-up & Writing" service of GDS.
    G14209553Courtesy of HYUNDAI MOTOR AMERICA
  4. IG key "OFF".
  5. Remove the under cover.

    (Refer to Engine mechanical system - "ENGINE ROOM UNDER COVER ")

  6. Support valve body cover of the transmission with jack

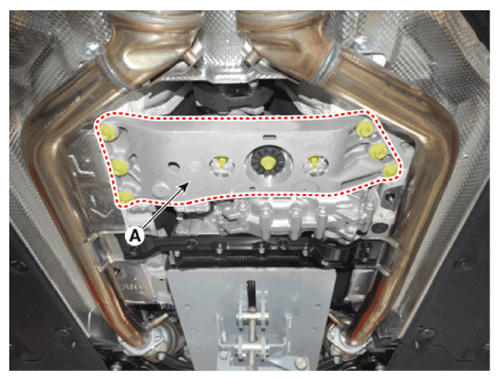

  7. Remove the cross member (A).
    G14209554Courtesy of HYUNDAI MOTOR AMERICA

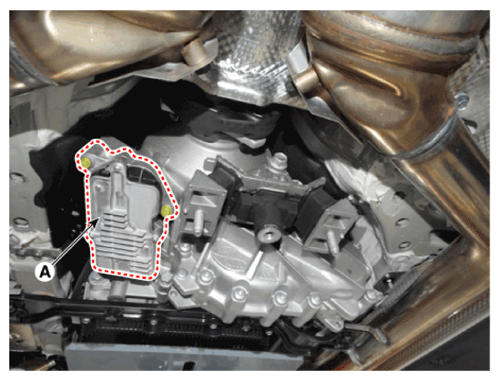

  8. Remove the ITA (Integrated Transfer case Actuator) (A).
    G14209555Courtesy of HYUNDAI MOTOR AMERICA

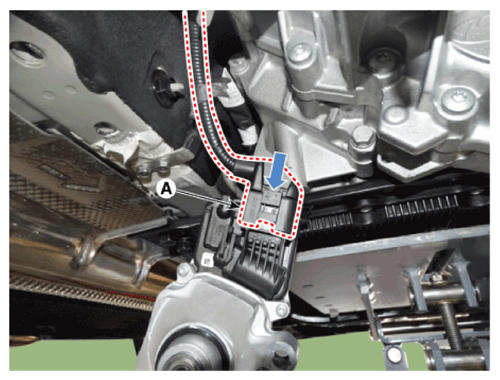

  9. Disconnect the ITA connector (A).
G14209556Courtesy of HYUNDAI MOTOR AMERICA
