Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim after opening the trunk.

    (Refer to Body - "TRUNK LID TRIM ")

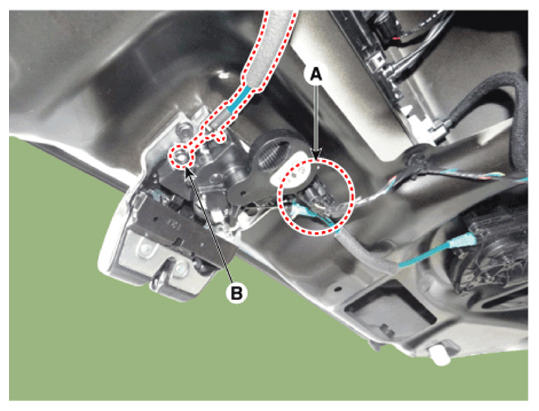

  3. Separate the power latch connector (A) and power latch cable (B).
    G14236243Courtesy of HYUNDAI MOTOR AMERICA

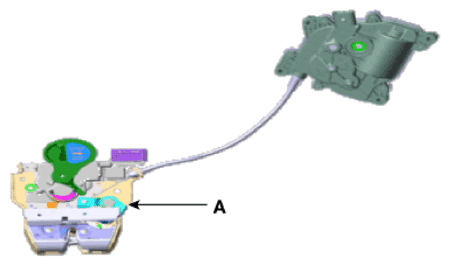

  4. Loosen the mounting bolts, remove the power trunk latch assembly (A).
    G14236244Courtesy of HYUNDAI MOTOR AMERICA

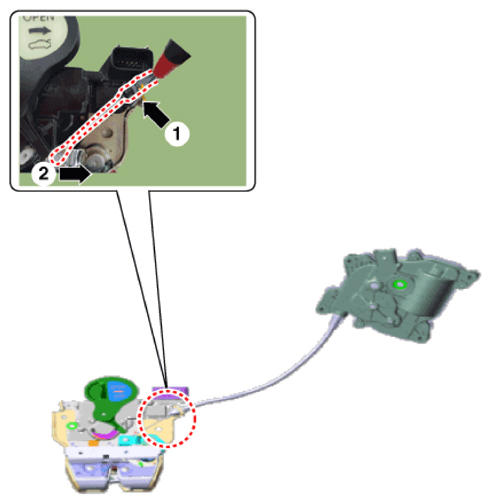

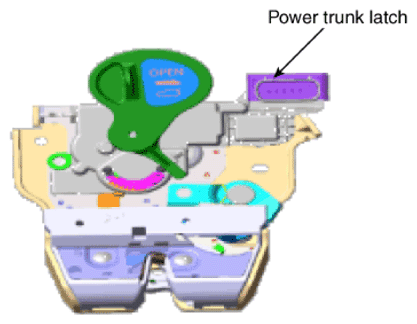

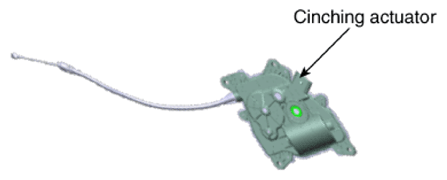

  5. Remove the cinching actuator from the power trunk latch assembly.
G14236245Courtesy of HYUNDAI MOTOR AMERICA
G14236246Courtesy of HYUNDAI MOTOR AMERICA
G14236247Courtesy of HYUNDAI MOTOR AMERICA
