Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

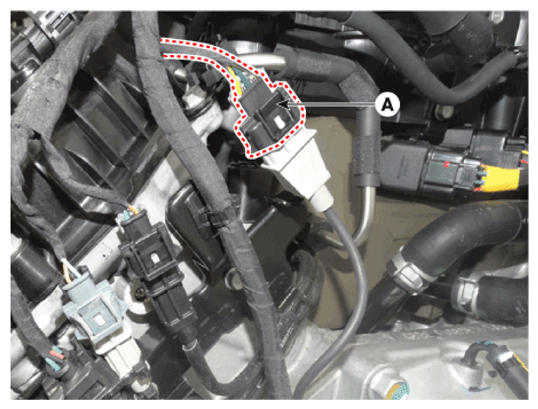

  2. Disconnect the crankshaft position sensor connector (A).
    G14237075Courtesy of HYUNDAI MOTOR AMERICA

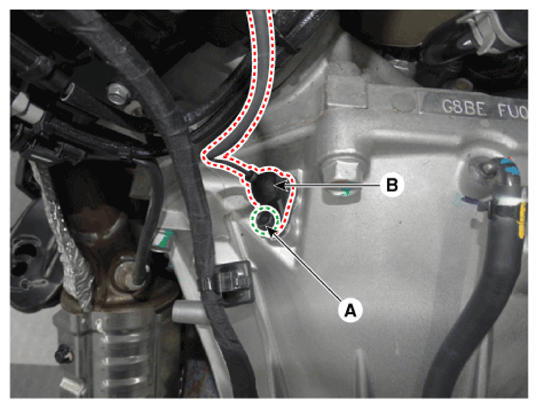

  3. Remove the sensor (B) after removing the installation bolt (A).
G14237076Courtesy of HYUNDAI MOTOR AMERICA
