Repair Procedures: Cleaning

1. Remove the ETC module.

   (Refer to Engine Control System - "ETC MODULE ")

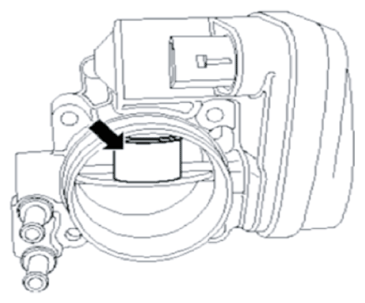

2. Keep the opening position of the ETC module plate with the fixing jig.

   Courtesy of HYUNDAI MOTOR AMERICA

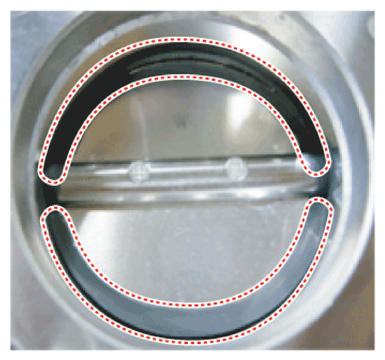

3. Clean the contamination part of the throttle body with a soft and lint-free cloth dampened with cleanser to prevent foreign objects from going in.

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Do not spray cleaner directly onto ETC module.
   • Do use a soft and lint-free cloth to clean carbon.

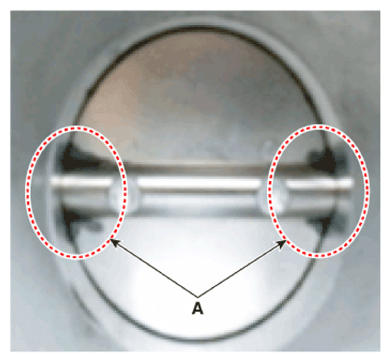

   • Be careful not to wipe out coating (A) around the shaft.


   If the coating is removed, poor idling control can be caused by excessive air leakage or foreign material getting into the bearing of the shaft.

   Courtesy of HYUNDAI MOTOR AMERICA

4. After cleaning it, re-install the ETC module and perform ETC module learning procedure.

(Refer to Adjustment  )
