Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.

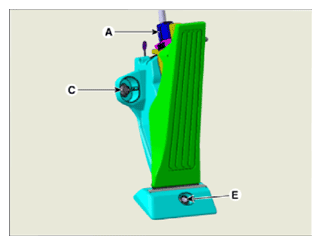

- Disconnect the accelerator position sensor connector (A).

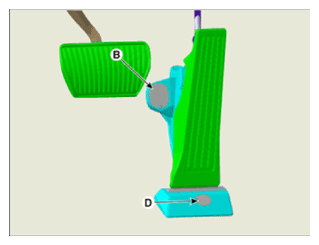

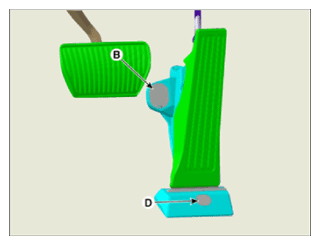

- Disconnect the upper mounting cap (B), and remove the mounting nut (C).
- Disconnect the lower mounting cap (D), and remove the mounting bolt (E).
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
