Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the Engine Cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Disconnect the camshaft position sensor connector (A).
- Remove the installation bolt (B), and then remove the crankshaft position sensor.
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

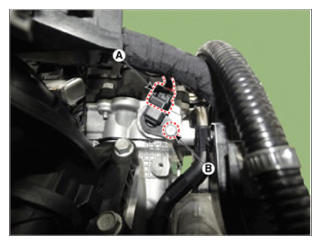

[Bank 1/Intake]

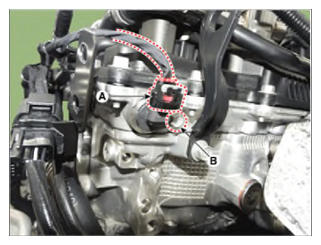

[Bank 1/Exhaust]
