ETC (Electronic Throttle Control) System: Specifications: Specification

• Type: Hall IC non-connect sensor type

[TPS1]

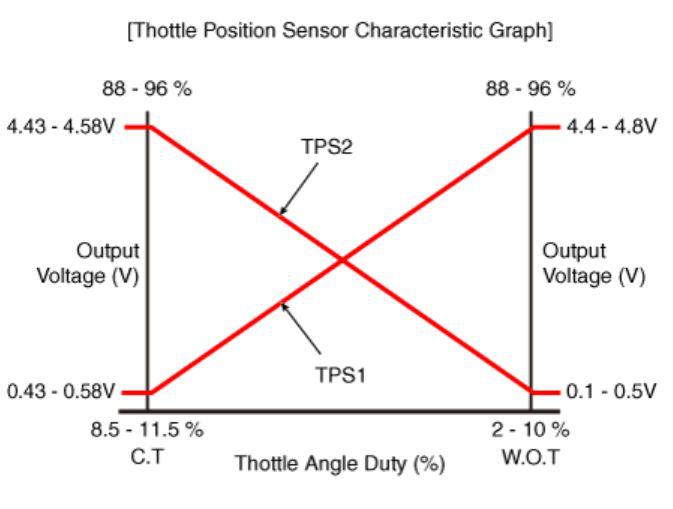

Item	Duty (%)	Output Voltage (V) [Supply Voltage = 5V]
C.T	8.5 - 11.5%	0.43 - 0.58
W.O.T	88 - 96%	4.4 - 4.8

[TPS2]

Item	Duty (%)	Output Voltage (V) [Supply Voltage = 5V]
C.T	88.5 - 91.5%	4.43 - 4.58.
W.O.T	2 - 10%	0.1 - 0.5

Courtesy of HYUNDAI MOTOR AMERICA

ETC Motor

Item	Specification
	New	Aged
Coil Resistance (Ω)	1.9 ± 10%	R < 2.8
