Repair Procedures: Removal

Information

• When DTC P2562/2563/2565 is set, perform the rod adjustment procedure first and check again that the same fault code is detected before replacing the Electric WGT Control Actuator.

1. Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
2. Remove the Engine Cover.

   (Refer to Engine Mechanical System - "ENGINE COVER ")

3. Remove the Exhaust Heat Protector.

   (Refer to Engine Mechanical System - "EXHAUST MANIFOLD ")

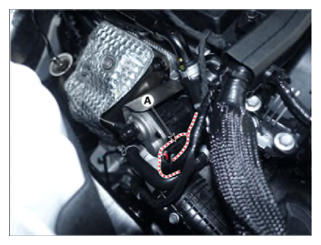

4. Disconnect the EWGA connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

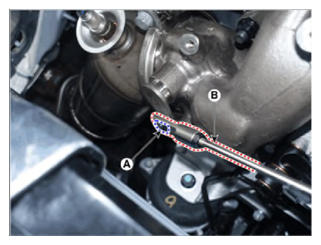

5. After removing C-ring (A), remove the shift link assembly (B).

   Courtesy of HYUNDAI MOTOR AMERICA

6. After remove the installing bolt (A), remove the EWGA.

   Tightening torque:

   11.7 - 13.7 N.m (1.0 - 1.2 kgf.m, 8.6 - 10.1 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

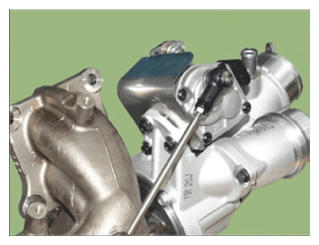

   • When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
