Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the Alternator.
(Refer to Engine Mechanical System - "ALTERNATOR ")

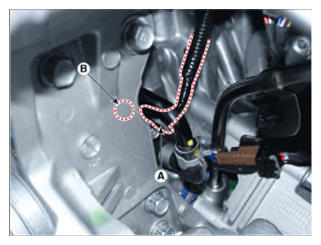

- After disconnecting the oil pressure & oil temperature sensor connector (A), remove the oil pressure & oil temperature sensor (B).
Tightening torque:
34.3 - 38.2 N.m (3.5 - 3.9 kgf.m, 25.3 - 28.2 lb-ft)
