Rail Pressure Sensor (RPS): Specifications: Specification

Pressure Output Voltage (V) [Vref=5V]
bar [MPa (kgf/cm2 , psi)]
0 0 (0, 0) 0.5
225 22.5 (229.4, 3263.3) 2.5
450 45 (458.9, 6526.7) 4.5

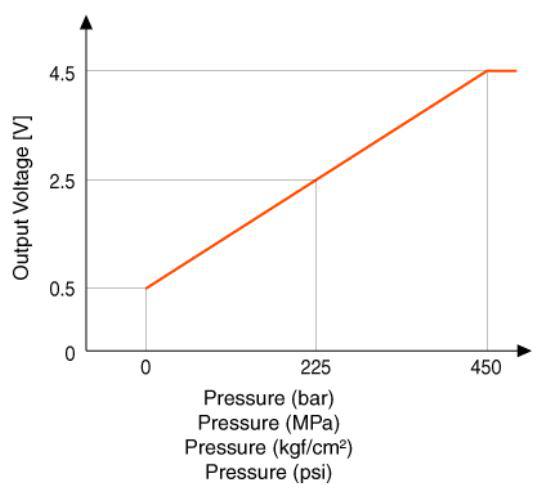

G14721386Courtesy of HYUNDAI MOTOR AMERICA
