Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the battery negative (-) terminal.

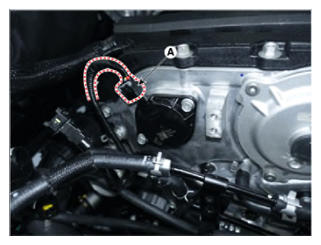

  2. Disconnect the variable force solenoid connector (A).
    G14721442Courtesy of HYUNDAI MOTOR AMERICA

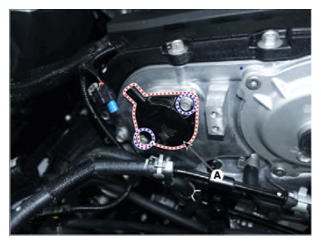

  3. Remove the installation bolt (B), and then remove the variable force solenoid (VFS).

    Tightening torque:

    9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

    G14721443Courtesy of HYUNDAI MOTOR AMERICA
