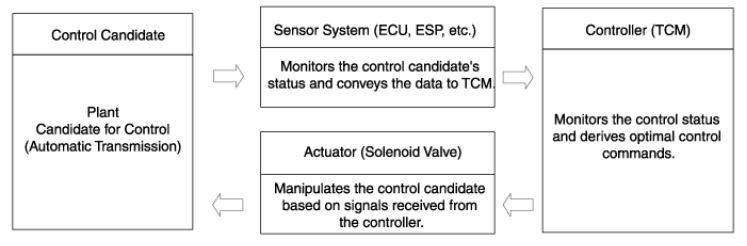

Control System Composition
Courtesy of HYUNDAI MOTOR AMERICA
Operating Principle
Instead of cable, the system uses electronic signals to shift between the P-R-N-D gears.
Structurally designed to ensure that the vehicle is in park at all times when the power is off.
