Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the rear propeller shaft.

    (Refer to Driveshaft and axle - "REAR PROPELLER SHAFT ")

  3. Loosen the bolts (A) and nuts (B) and then removing the transmission bracket (C).

    [2WD]

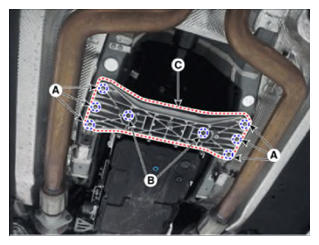

    G14721836Courtesy of HYUNDAI MOTOR AMERICA

    [4WD]

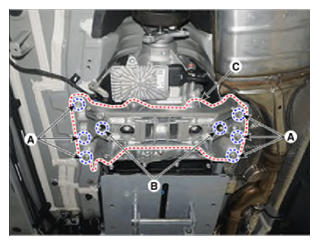

    G14721837Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • support the transmission solenoid valve body cover using a jack.

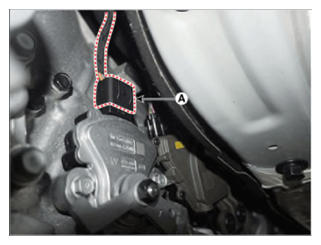

  4. Disconnect the parking switch connector (A).
    G14721838Courtesy of HYUNDAI MOTOR AMERICA

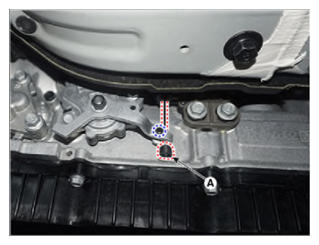

  5. Loosen the fastener and then separate the parking release cable (A).
    G14721839Courtesy of HYUNDAI MOTOR AMERICA

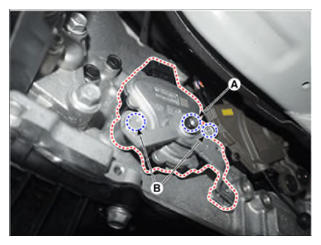

  6. Loosen the nut (A) and the bolts (B) and then removing the parking switch.
    G14721840Courtesy of HYUNDAI MOTOR AMERICA
